BiG200 3 Bay Mega Deal 1600h x 1220w x 455d mm 4 Levels 200kg UDL Blue & Orange
BiG200 3 Bay Mega Deal 1600h x 1220w x 455d mm 4 Levels 200kg UDL Blue & Orange
- Next day delivery available, in stock products only
- Find a lower price & we'll match it
- Large Project? Call for site visit & quote
Friday 8am - 4:30pm
Excluding Bank Holidays

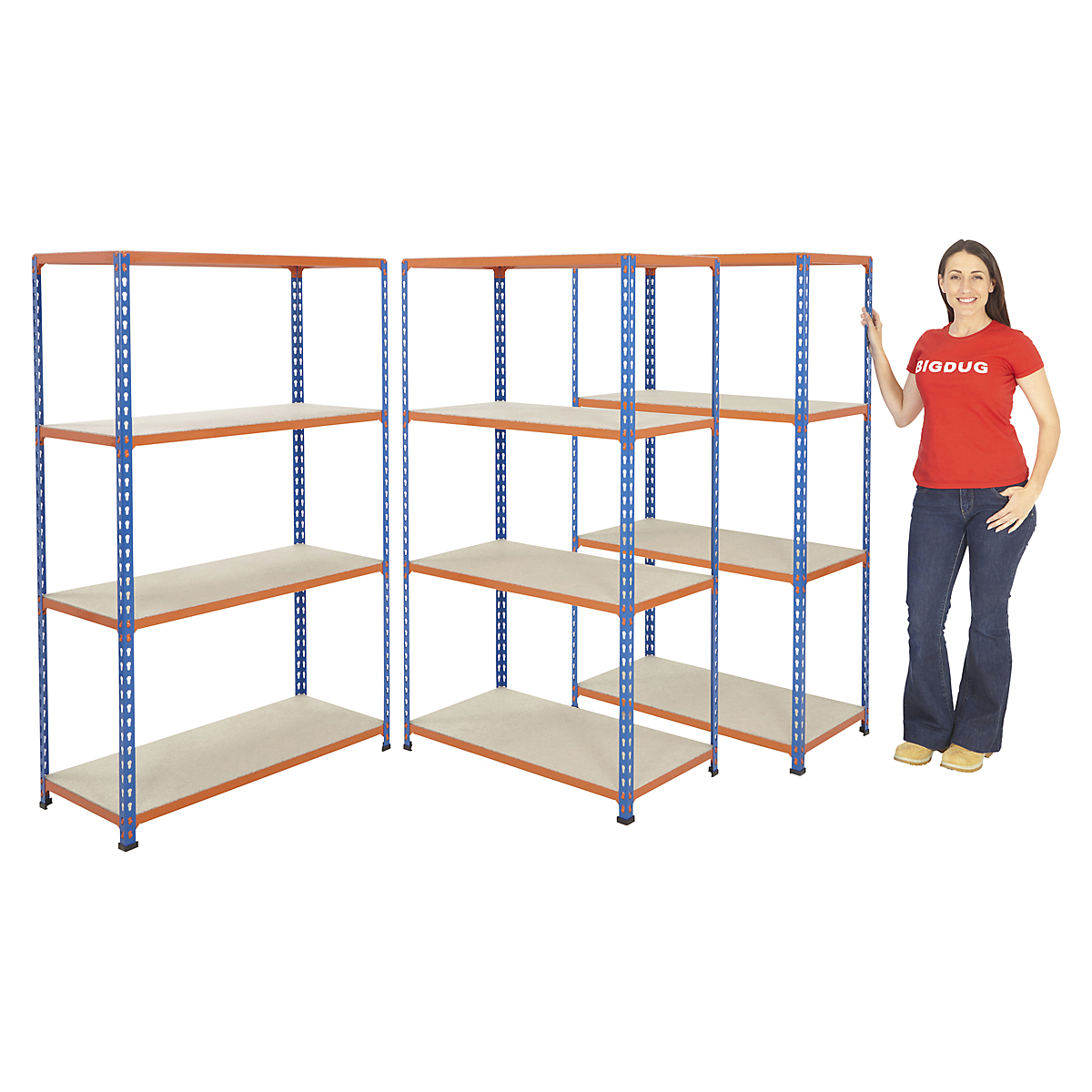

Expand your shelving solutions at an affordable price with our 3-bay shelving deal, which combines three of our robust BiG200 shelving units. Manufactured with premium-grade European steel and certified to FEM standards, this 3-bay shelving guarantees sturdy and reliable storage. Each of the four shelves can hold up to 200kg UDL* and are height-adjustable, allowing you to store different-sized items. With a high-visibility blue and orange powder coat and protective plastic feet, this shelving is perfect for workshops, storerooms, offices, and garages.
- Easy-reach shelving with Mega Deal cost savings
- Load capacity per shelf: up to 200kg UDL*
- Four adjustable chipboard shelves per bay
- Premium-grade, European steel frames
- Shop extra levels here
BiG200 3-Bay Shelving Kit

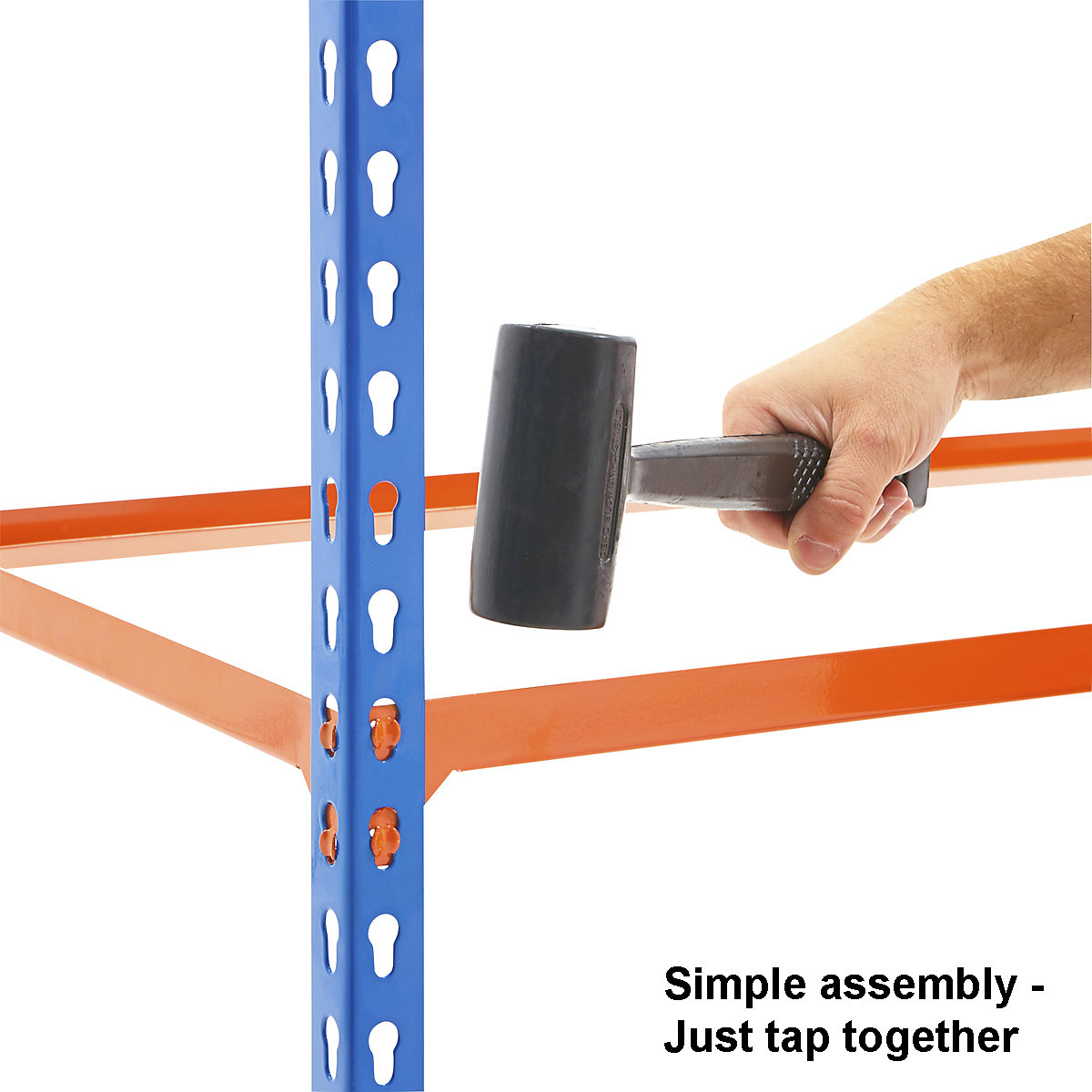

- Simple and quick to build - just tap together with a rubber assembly mallet

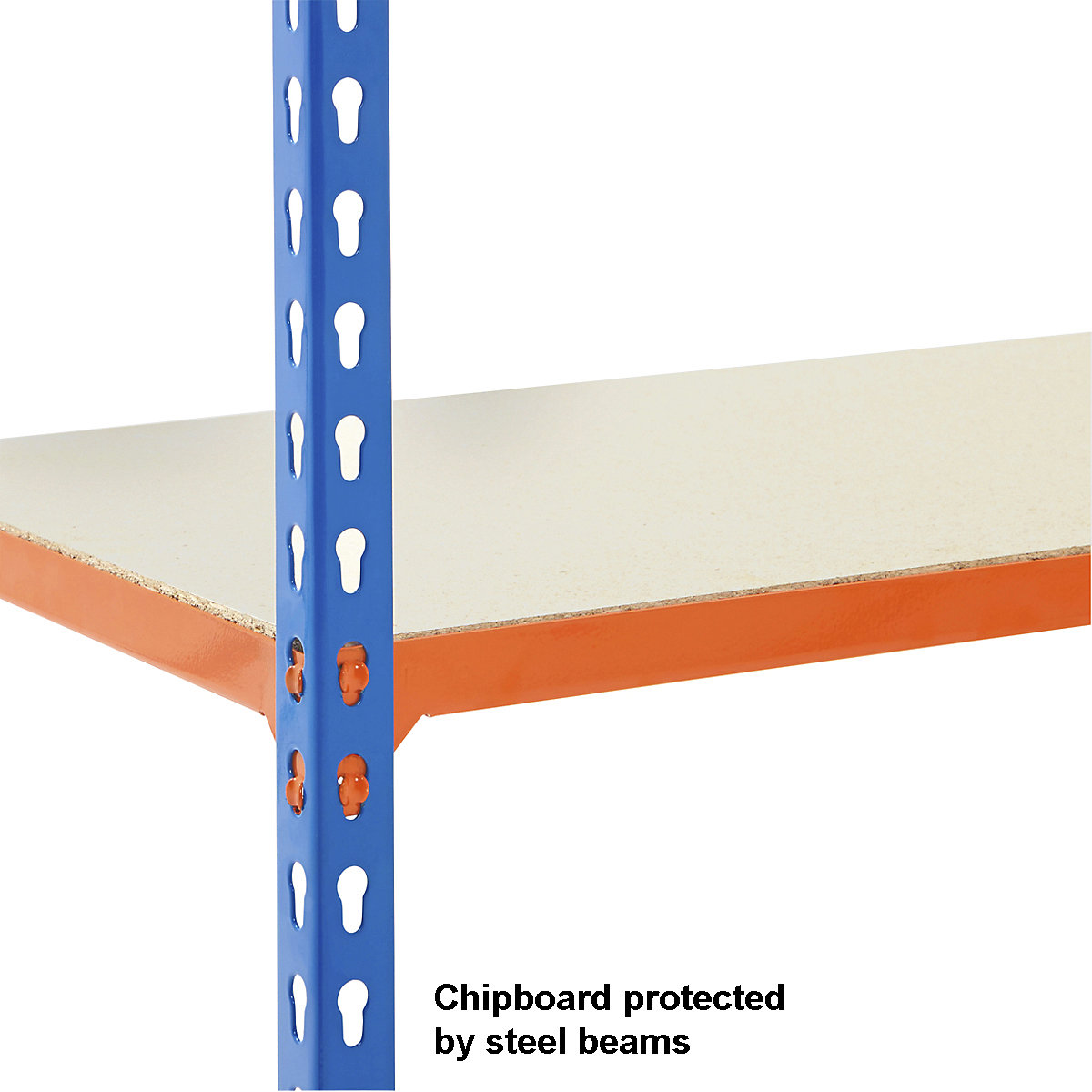

- Flush-fitting decks protected from impact by surrounding steel beams

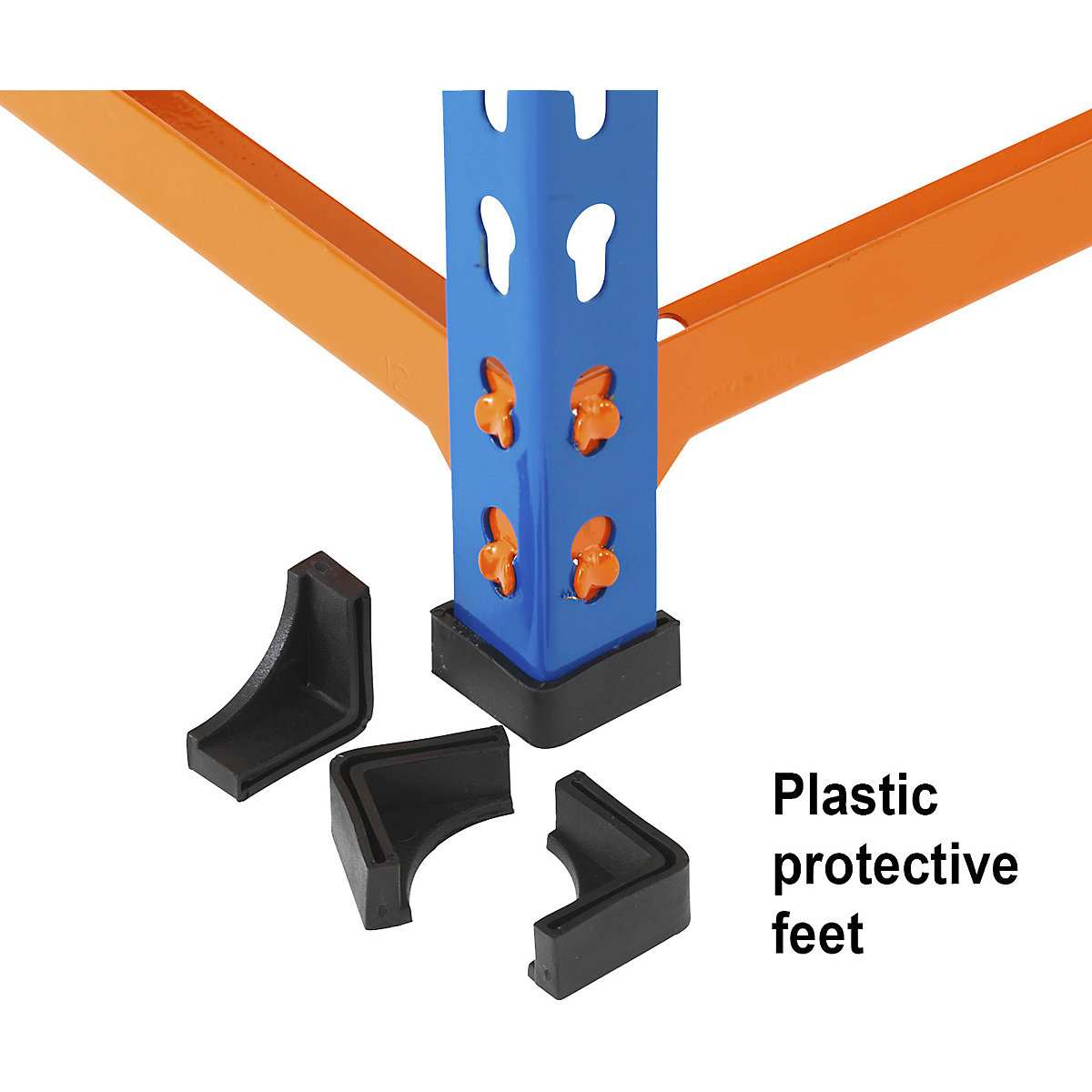

- Supplied with protective plastic feet
- Powder-coated in hardwearing blue and high-visibility orange
- Additional shelves, steel dividers, steel feet, wall fixing sets, and tie plates available
* UDL= Uniformly Distributed load
Please note: adding extra shelf levels will impact the permitted load capacity per bay. Please see the shelving guide in downloads for more information.
Shelving Specifications
| Data Field | 915mm Width |
|---|---|
| Upright Type | One Piece |
| Upright Steel Thickness | 1.5mm |
| Beam Steel Thickness | 1.5mm |
| Shelf Adjustment Increments | 38.1mm |
| Shelf Thickness | 30mm |
| Chipboard Thickness | 15mm |
| Total Bay Capacity 1600h mm | 1200kg |
| Clear Width | 851mm |
| Extra Levels Available | Y |

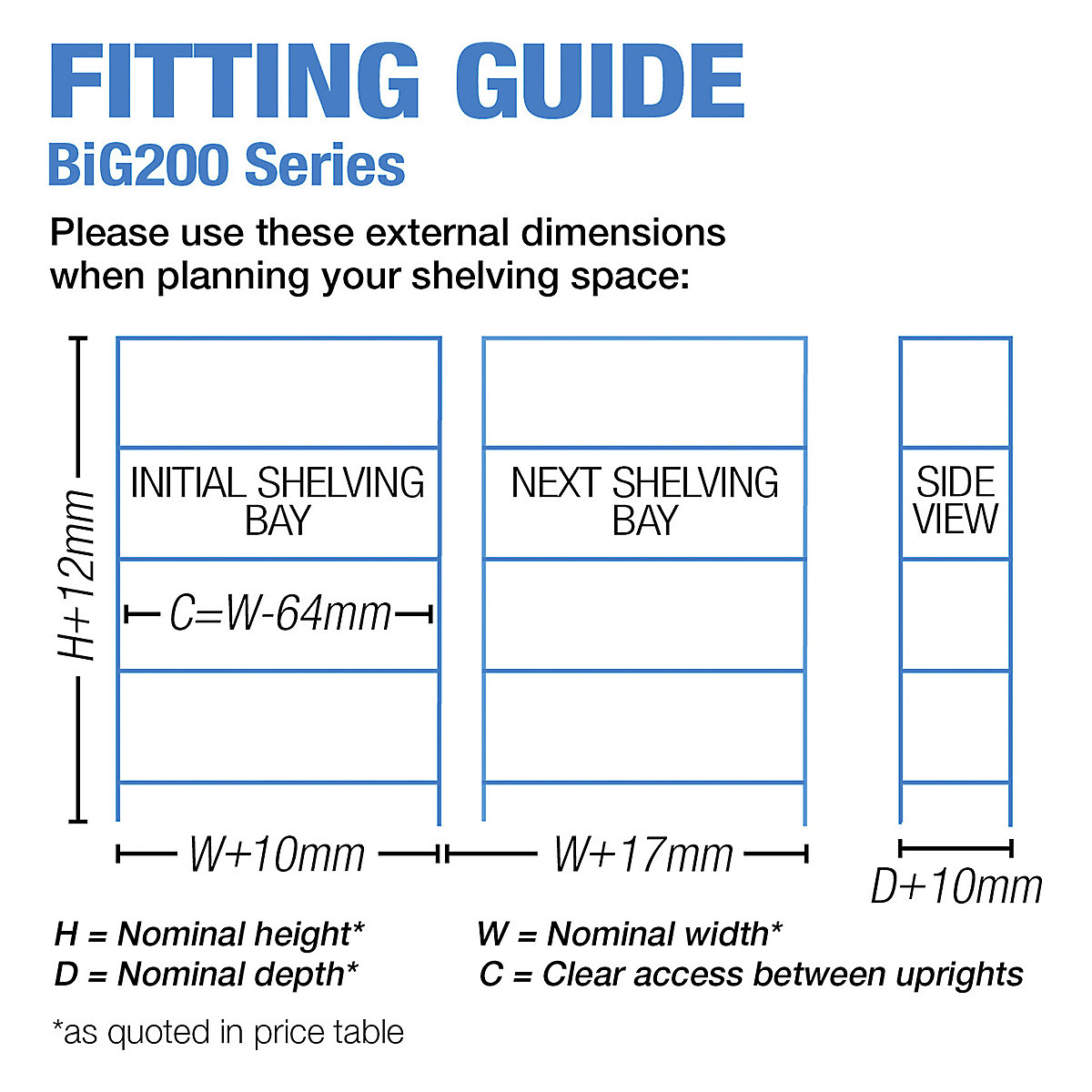

Fitting Guide
Please check our guides for each range when planning your shelving space.
| Nominal Shelf Width mm: | Clear Entry mm: | Initial Bay External mm: | Next Bay External mm: |
|---|---|---|---|
| 455 | 391 | 465 | 472 |
| 610 | 546 | 620 | 627 |
External Height = H+12 Pitch = 38.1
Clear height between shelves = (No. x pitch) -30
All dimensions in Millimetres
How Secure Is This 3-Bay Shelving?
The BiG200 3-Bay Shelving is designed for stability and safety. Its sturdy frame has boltless assembly to ensure a tight, secure fit, while flush-fitting decks are protected from impact by surrounding steel beams. Each shelf can hold up to 200kg UDL* to ensure reliable support for heavy loads. It is powder-coated in a high-visibility blue and orange to enhance safety, and wall fixings and steel feet can be purchased separately for additional security.
Can BiGDUG’s BiG200 3-Bay Shelving Kit Be Customised?
Yes, BiGDUG’s 3-bay shelving is highly customisable to suit your specific needs. Choose between different depths and widths for a bay that suits your space, and you can easily add more bays with tie plates. The shelves can be adjusted every 38.1mm, allowing you to easily configure the bay to accommodate items of various heights, from small components to large storage boxes. Additional shelves are available separately.
Is This 3-Bay Shelving Suitable For Domestic Use?
Our BiG200 3-bay shelving kit is better suited for use in light industrial and commercial environments, such as retail backrooms, storerooms, and smaller warehouses, as well as domestic environments, including garages. For more home storage solutions, browse BiGDUG’s range of wall shelving for home offices and garage shelving, which are designed with home aesthetics and typical domestic load requirements in mind.
Contact BiGDUG
BiGDUG is a reliable supplier of BiG200 shelving. If you’re planning a large project and need some personal assistance, we can call to your site to assess your requirements.
For anything else, please contact us on 0333 200 5299 or via Live Chat on Monday to Thursday 9am - 5pm, and Friday 9am - 4:30pm.
