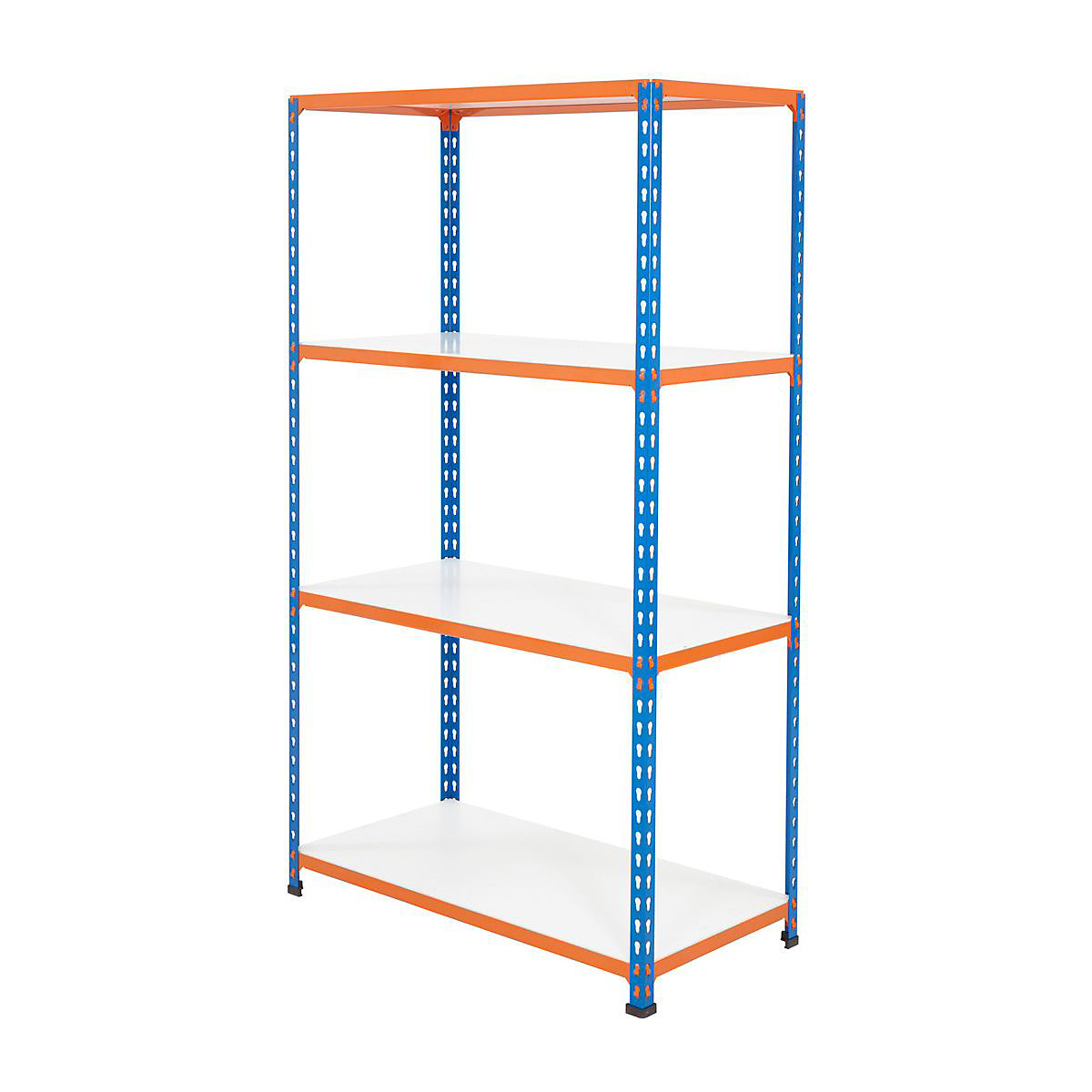

BiG200 Melamine Shelving 1600h x 1525w x 305d mm 4 Levels 90kg UDL Blue & Orange
BiG200 Melamine Shelving 1600h x 1525w x 305d mm 4 Levels 90kg UDL Blue & Orange
- Next day delivery available, in stock products only
- Find a lower price & we'll match it
- Large Project? Call for site visit & quote
Friday 8am - 4:30pm
Excluding Bank Holidays
Free up floor space & enjoy an efficiently organised area using our general-purpose BiG200 shelving units; the light-industrial version of our BiG340 series.
- Load capacity per shelf: up to 200kg UDL*
- Choice of chipboard, melamine or steel shelves
- Manufactured from premium-grade European steel
- Each shelf is fully adjustable in height every 38mm (1.5 inches)
- Additional shelves, wall fixing sets & tie plates available
- Simple boltless stud-and-keyhole design - just tap together with a rubber assembly mallet
- Available in three colour finishes
- Supplied with protective plastic feet
- No cross bracing required - suitable for double-sided access
- Available from stock & eligible for our Next Day Delivery service
Please Note: actual shelf capacity varies according to shelf size. Please refer to specific product for maximum loads
Please note: If used in a damp or humid environment BiGDUG recommends MDF shelving decks are treated with a high quality wood varnish or sealant
* UDL= Uniformly Distributed Load
Shelving Specifications
| Data Field | 915mm Width | 1220mm Width | 1525mm Width |
|---|---|---|---|
| Upright Type | One Piece | One Piece | One Piece |
| Upright Steel Thickness | 1.5mm | 1.5mm | 1.5mm |
| Beam Steel Thickness | 1.5mm | 1.5mm | 1.5mm |
| Shelf Adjustment Increments | 38.1mm | 38.1mm | 38.1mm |
| Shelf Thickness | 30mm | 30mm | 30mm |
| Chipboard Thickness | 15mm | 15mm | 15mm |
| Melamine Thickness | 15mm | 15mm | 15mm |
| Steel Panel Thickness | 0.8mm | 0.8mm | 0.8mm |
| Total Bay Capacity 1600h mm | 1200kg | 1200kg | 1200kg |
| Clear Width | 851mm | 1156mm | 1461mm |
| Extra Levels Available | Y | Y | Y |
Fitting Guide
Please check our guides for each range when planning your shelving space.
| Nominal Shelf Width mm: | Clear Entry mm: | Initial Bay External mm: | Next Bay External mm: |
|---|---|---|---|
| 610 | 546 | 620 | 627 |
| 915 | 851 | 925 | 932 |
| 1220 | 1156 | 1230 | 1237 |
| 1525 | 1461 | 1535 | 1542 |
External Height = H+12 Pitch = 38.1
Clear height between shelves = No. x pitch -30
All dimensions in Millimetres
