Code: AH29C5M

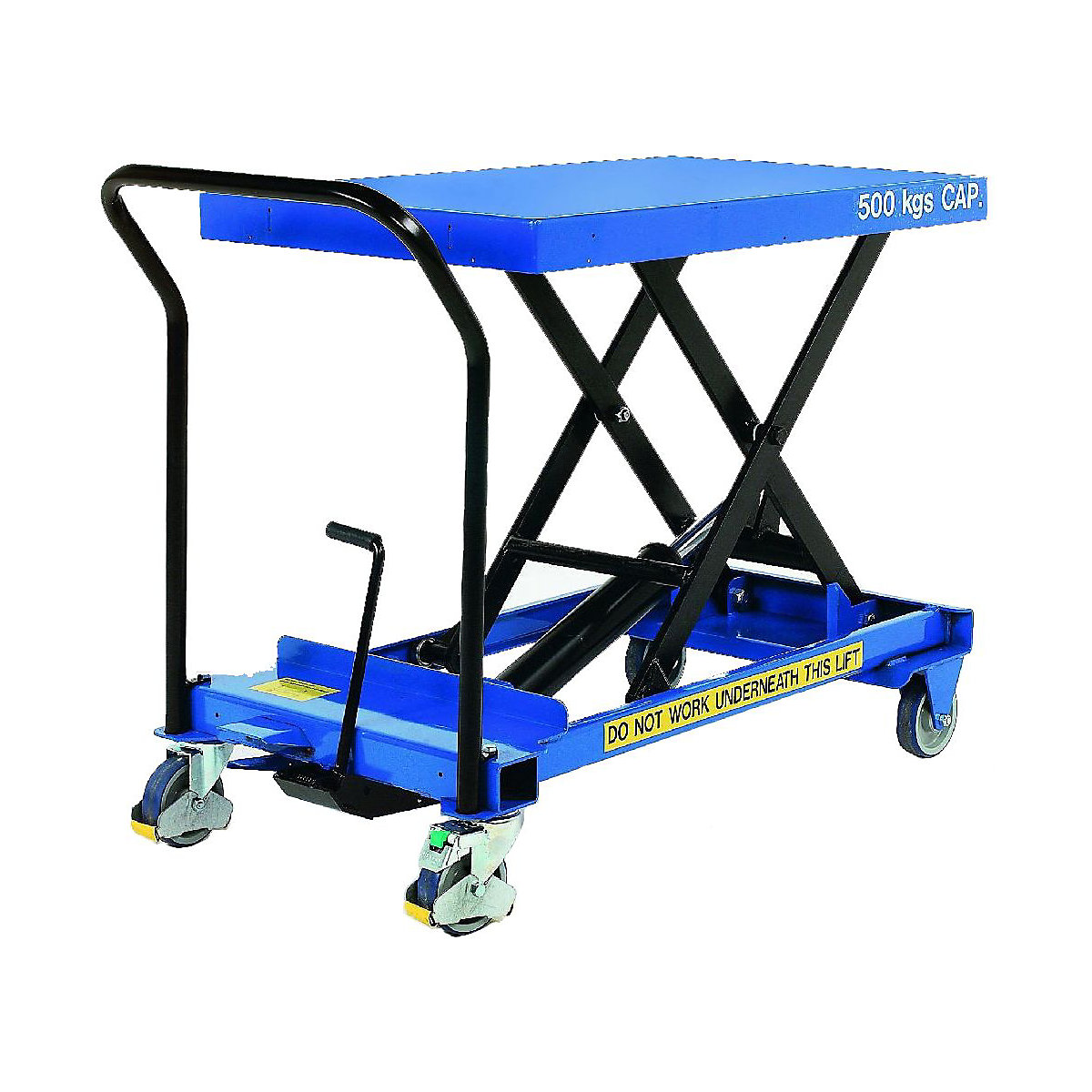

500kg Single Scissor Lift Table | Lift Height: 340mm To 900mm | Platform Size: 610 x 1030mm

500kg - 1250kg Heavy Duty Scissor Lifts
Capacity
Lock Type
Delivery time: 2-15 Working Days
Product description

Elevate warehouse operations with this heavy-duty 500kg Scissor Lift Table. Designed for industrial applications, this versatile lifting table allows you to safely and efficiently raise and lower heavy goods, whether you're assembling, storing, or picking stock. The largest of the range of manually operated scissor lift tables, this table can lift up to 1250kg. Used to maintain loads at suitable working heights, aid unloading/loading from shelves/transport or just extend working surfaces, this heavy-duty scissor lift table​ features 2 x swivel/braked and 2 x fixed castors for easy manoeuvrability.

  • Fully compliant with European safety standards EN1570 and BS:5323:1980.
  • 2x swivel/braked castors and 2x fixed
  • Low maintenance, manual hydraulic lift
  • Overload and slow-lowering valve
  • Total stop brake

Heavy-Duty Scissor Lift Table

  • Available as a single, double or triple lift
  • Low closed height
  • Wheel Diameter: 150mm/125mm (all models)
  • Safety cut-off bar on underside of platform
  • Overall Dimensions (width x length): 860mm x 1650mm (500kg, 800kg and 1250kg); 1000mm x 2350mm (1000kg)
  • Handle Height: 1010mm (all models)
  • Roller top platform available below
  • 12-month parts and labour warranty.

Please note: This product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.

Code Platform Capacity Lift Height Lift Time
AH31A8M 840 x 1350mm 800kg 360mm To 1050mm 80 Pumps
AH29C5M 610 x 1030mm 500kg 340mm To 900mm 40 Pumps
AH31C1M 840 x 1350mm 1250kg 360mm To 1050mm 80 Pumps
AH31E1M 1000 x 2000mm 1000kg 360mm To 1050mm 80 Pumps
AH32A5M 840 x 1350mm 500kg 490mm To 1900mm 80 Pumps
AH32C8M 840 x 1350mm 800kg 490mm To 1900mm 160 Pumps
AH33A5M 840 x 1350mm 500kg 650mm To 2900mm 468 Pumps

What’s The Difference Between Single, Double, And Triple Scissor Lift Tables?

Single-, double-, and triple-scissor lift tables primarily differ in their maximum lift height and the mechanism used to achieve it. A single scissor lift uses one set of crisscrossing arms, offering a standard lifting range. Double- and triple-scissor lifts stack multiple sets of arms, allowing them to reach significantly higher elevations while maintaining the same platform size and footprint, making them suitable for tasks requiring greater vertical travel.

Is The Heavy-Duty Scissor Lift Table Suitable For Industrial Environments?

Yes, this 500kg Scissor Lift Table is specifically designed for heavy-duty industrial applications, offering robust construction and a high load capacity – up to 1250kg on some models – to safely handle heavy loads. Its features, including compliance with European safety standards EN1570 and BS:5323:1980, a low-maintenance hydraulic lift, and an overload safety valve, ensure reliable and safe operation in demanding warehouse, manufacturing, and assembly environments.

How Easy To Manoeuvre Is This 500kg Scissor Lift Table?

Despite its size and load capacity, this heavy-duty scissor lift table is built for effortless mobility in busy industrial environments. The lift has two fixed and two swivel castors, each equipped with brakes to ensure the lift remains securely and stably positioned during loading, unloading, and operation. This combination of fixed and swivel/braked castors provides smooth, simple manual manoeuvrability, making it easy for staff to position the lift table wherever it is required across the workspace.
