Code: ST4L127MGF3
Product not available
Currently not availableProduct description

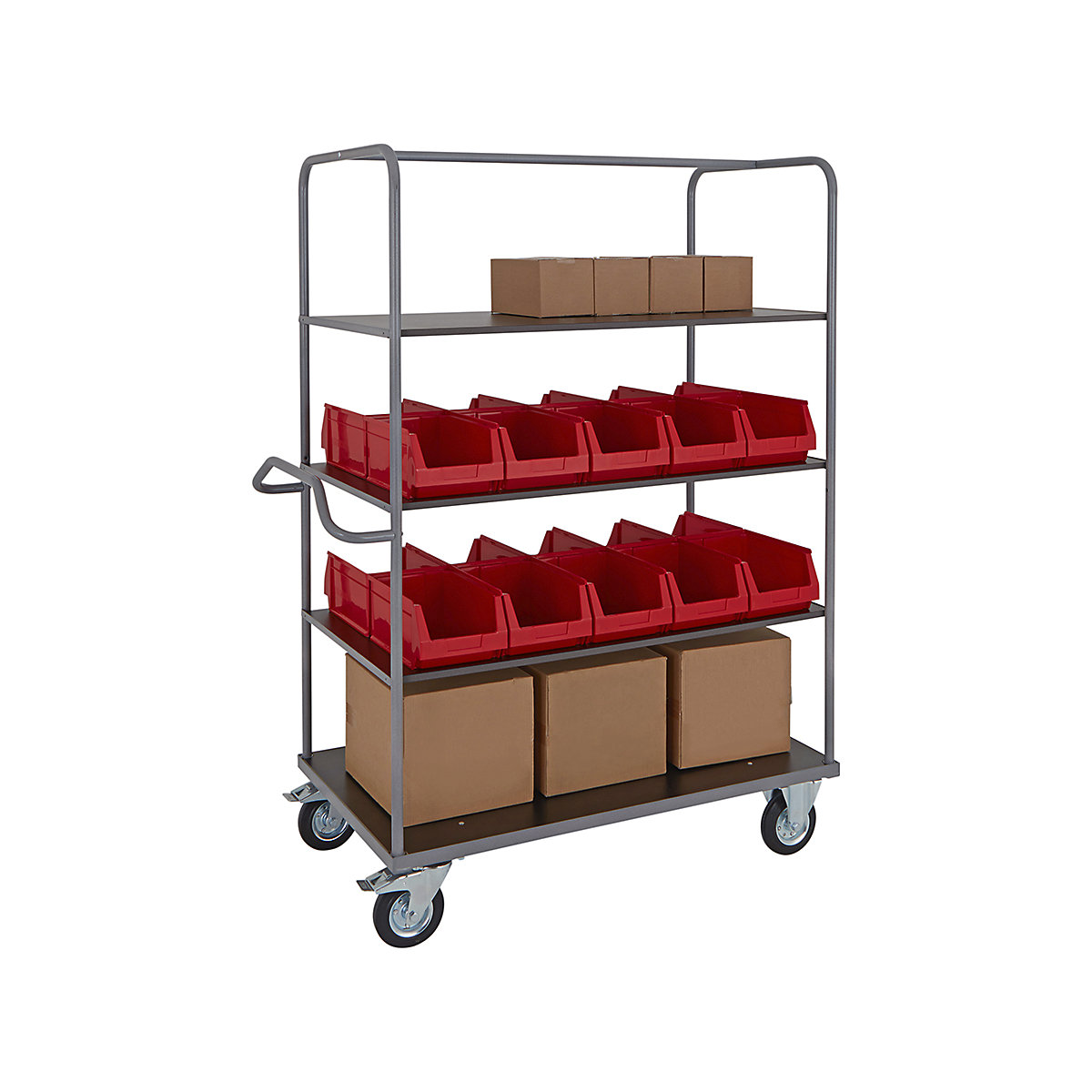

The BiGDUG Four Level Heavy Duty Shelf Trolleys are ideal for order picking and transporting goods. With this deal you simply pick the amount of trolleys you require, the type of castors and whether the trolley should be mesh or open sided.
- Total SWL** of up to 500kg UDL* depending on the castor type selected
- Base level maximum load capacity of up to 350kg UDL*
- Removable shelf levels have a maximum load capacity of 50kg UDL*

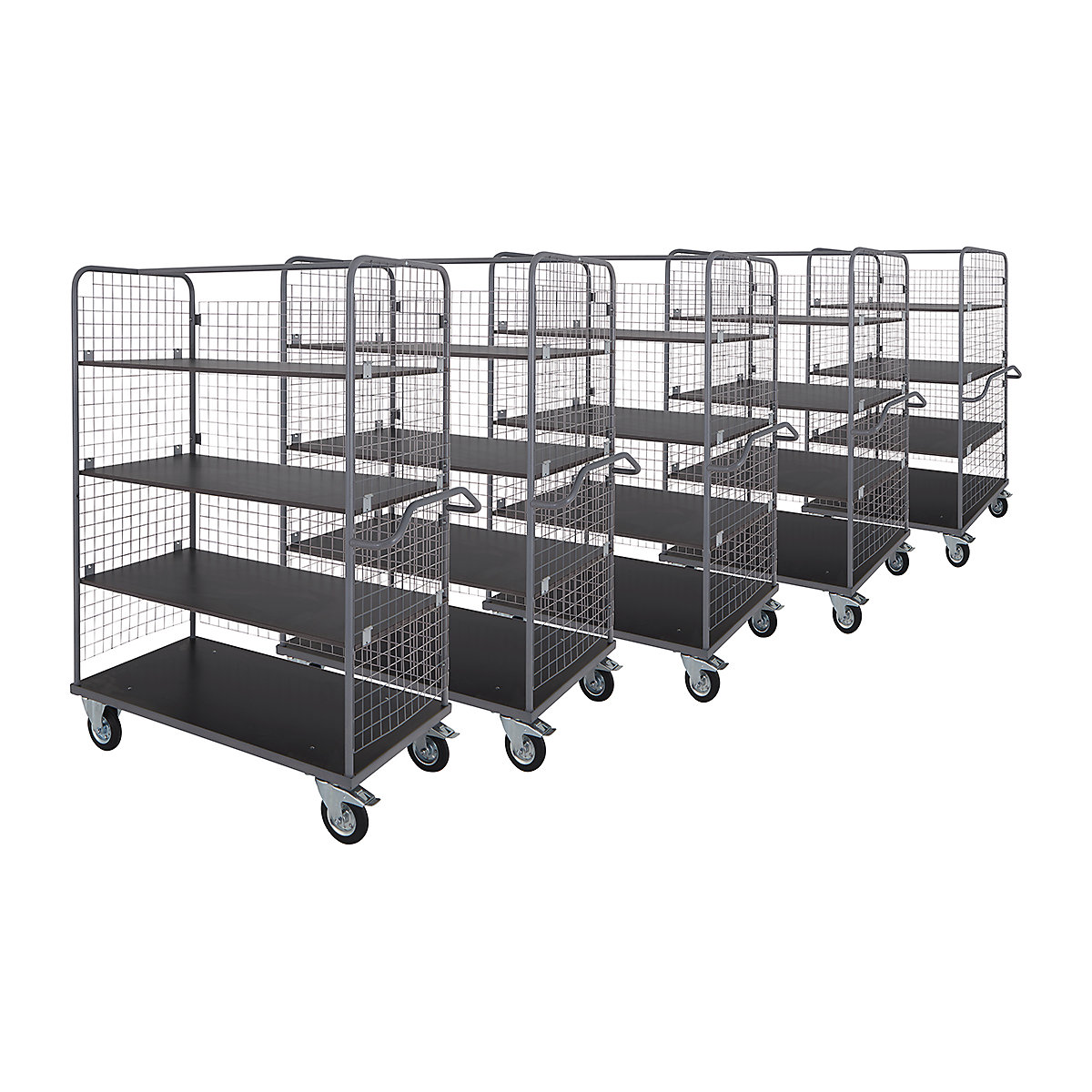

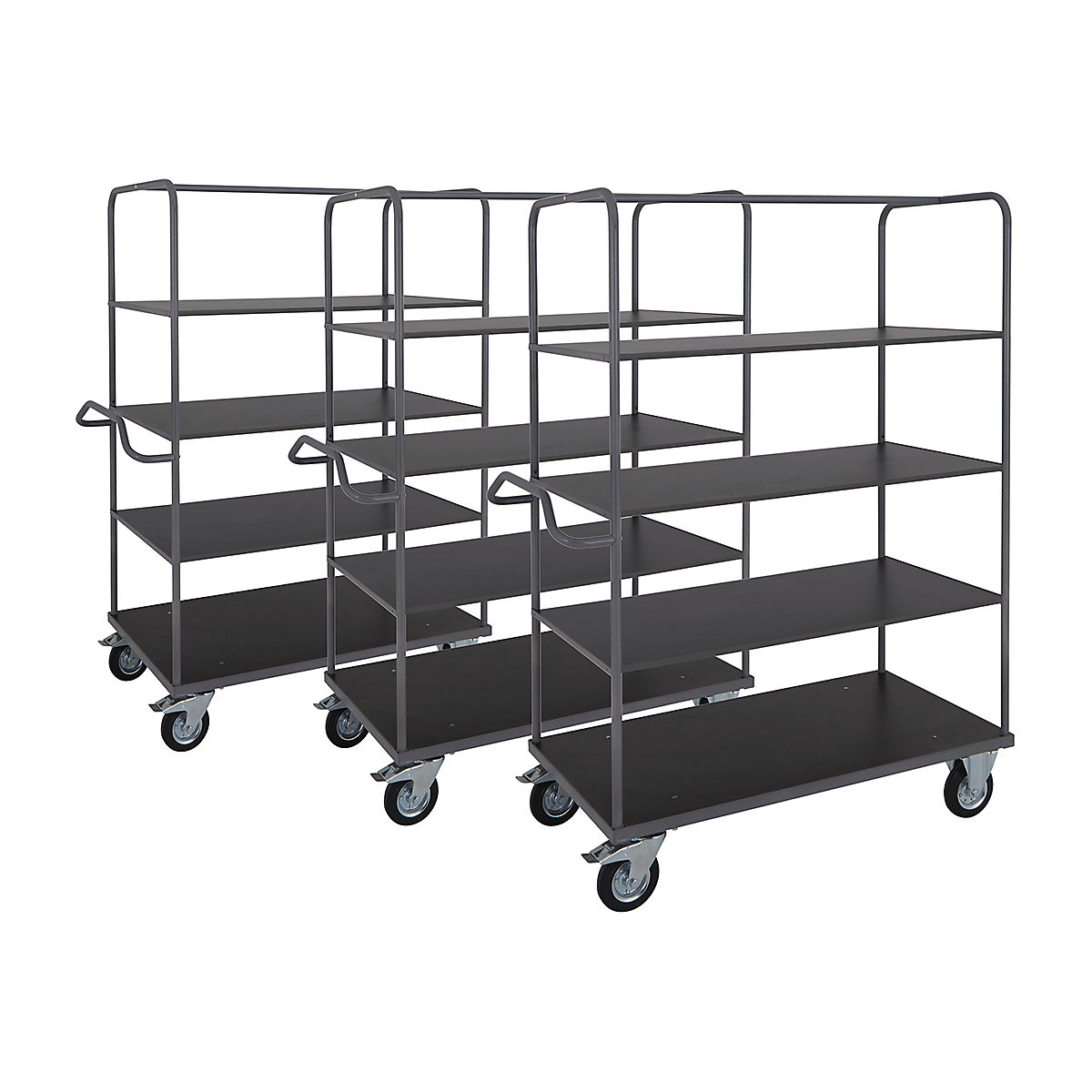

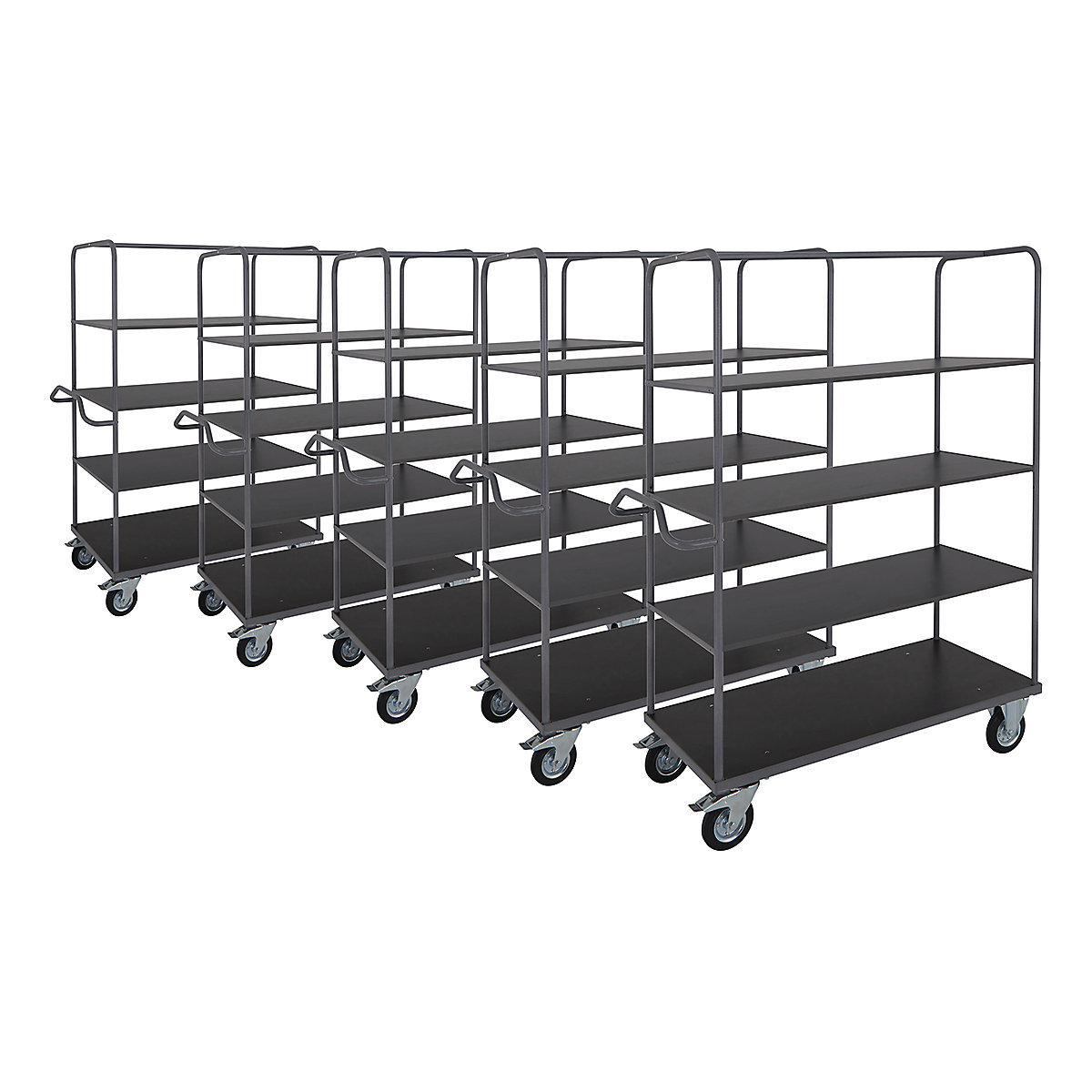

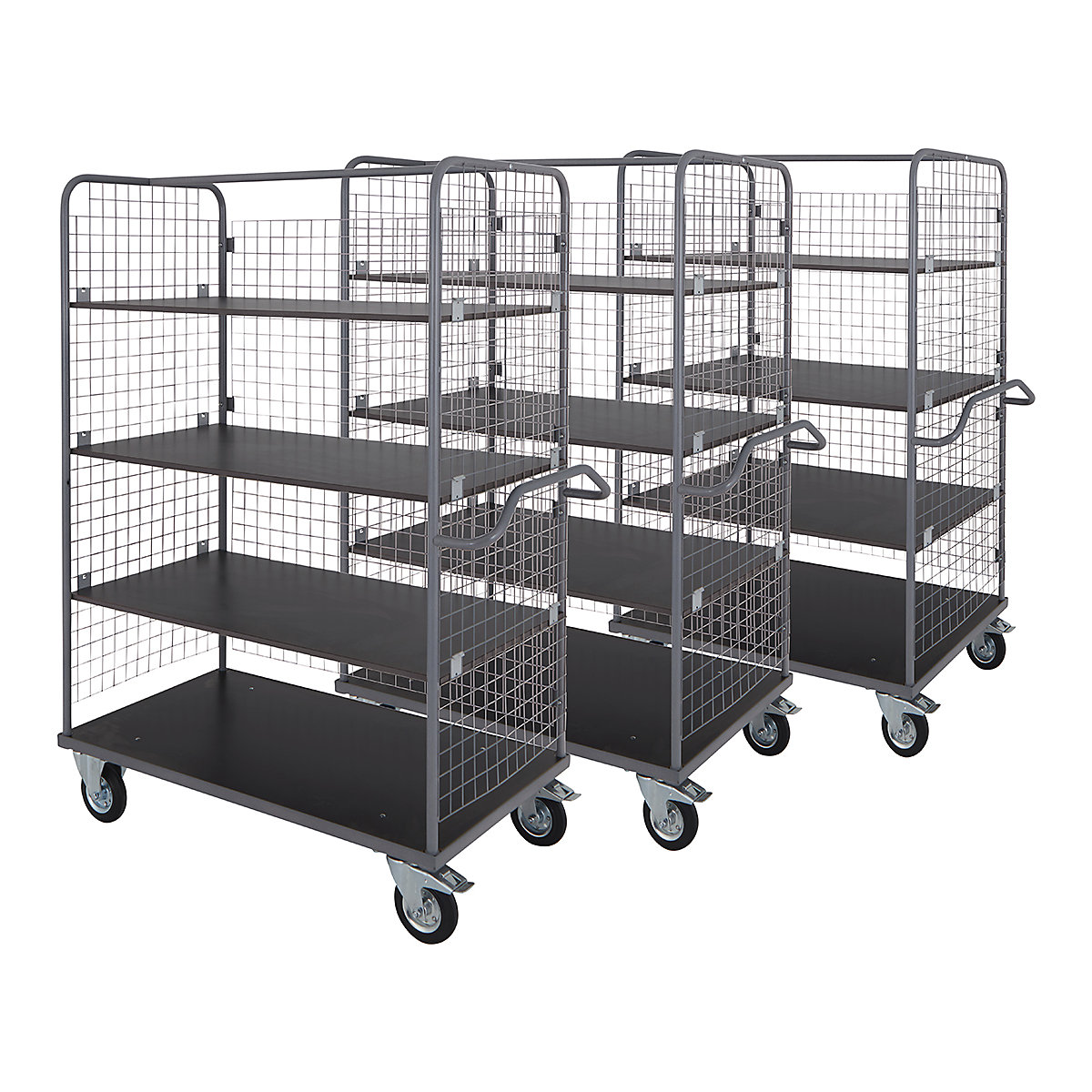

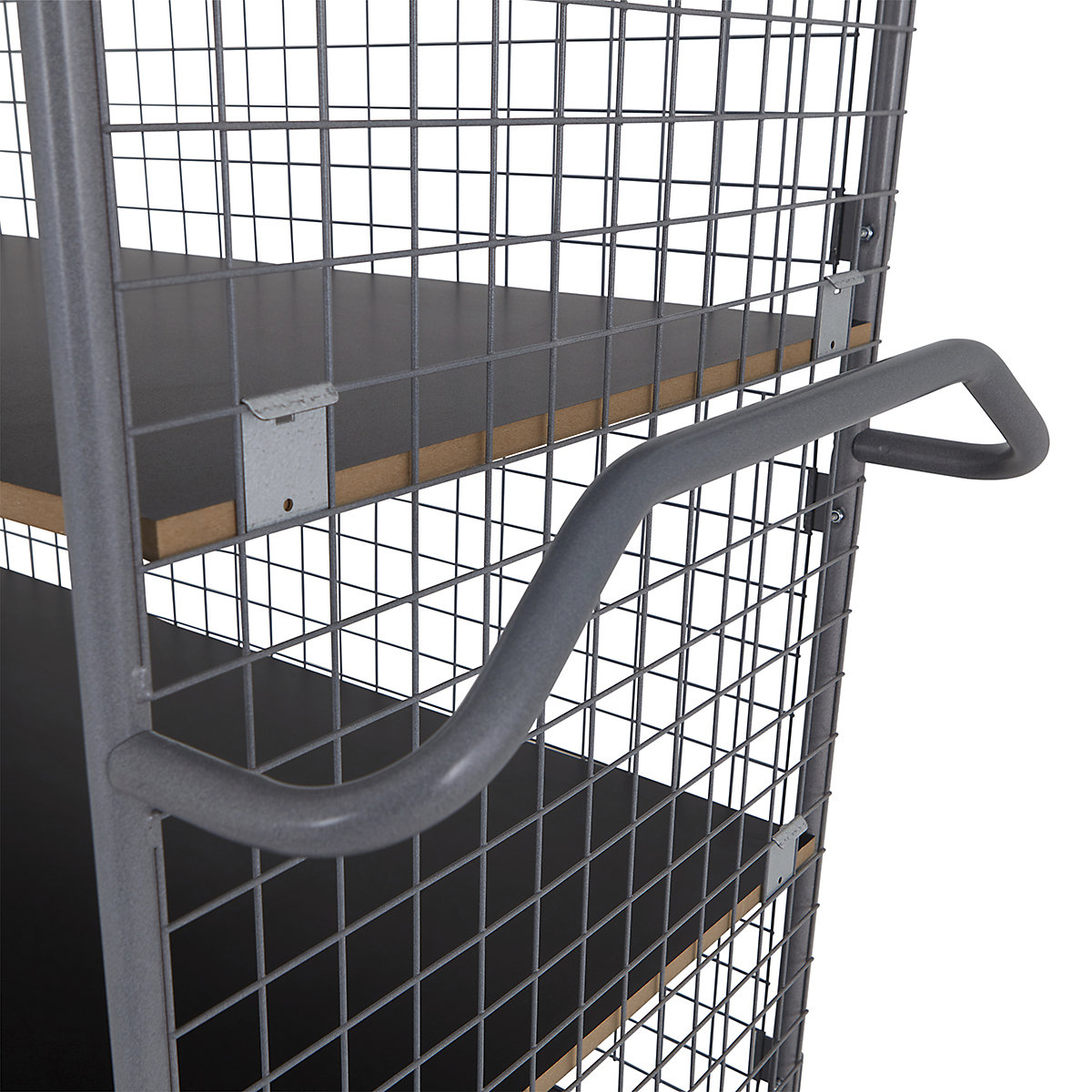

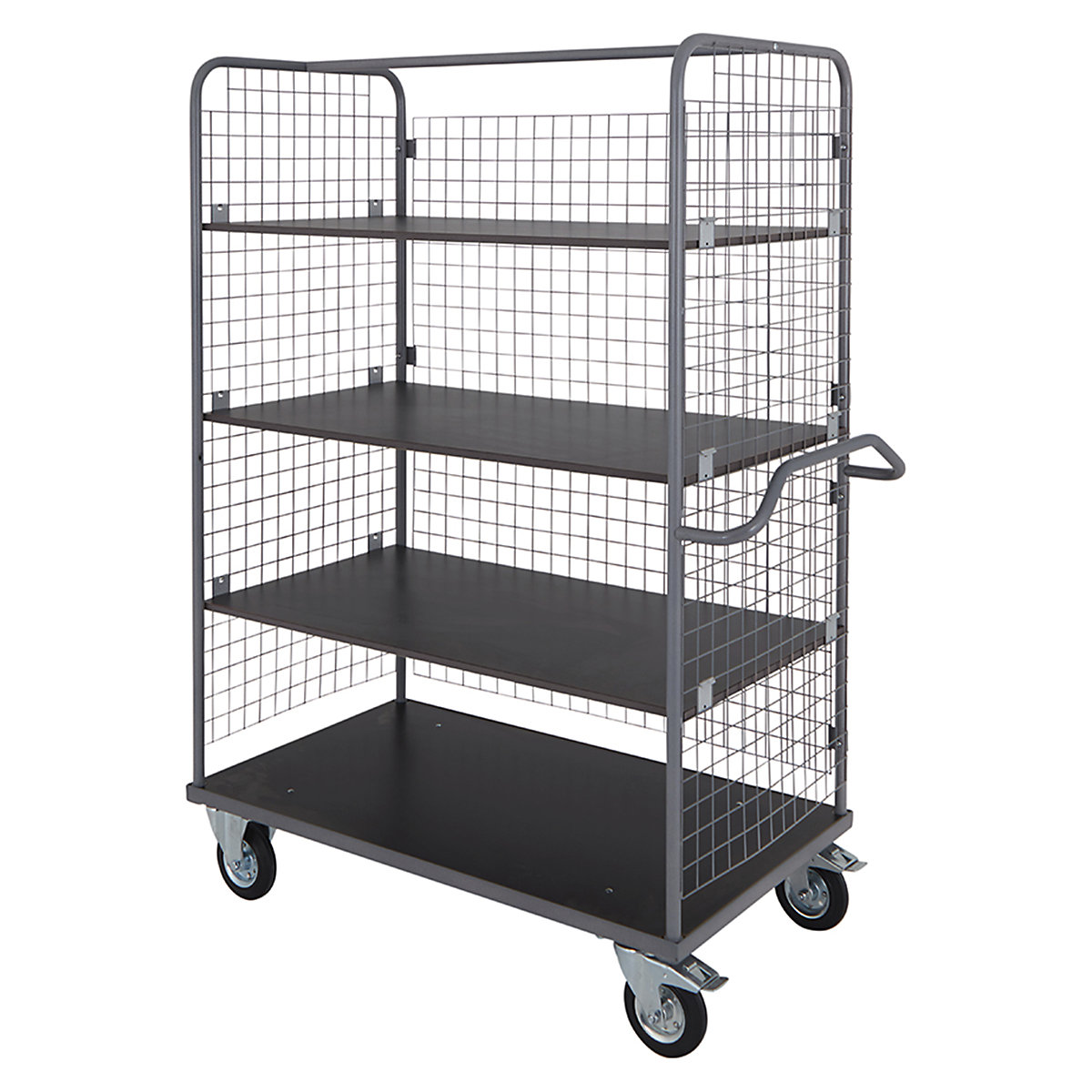

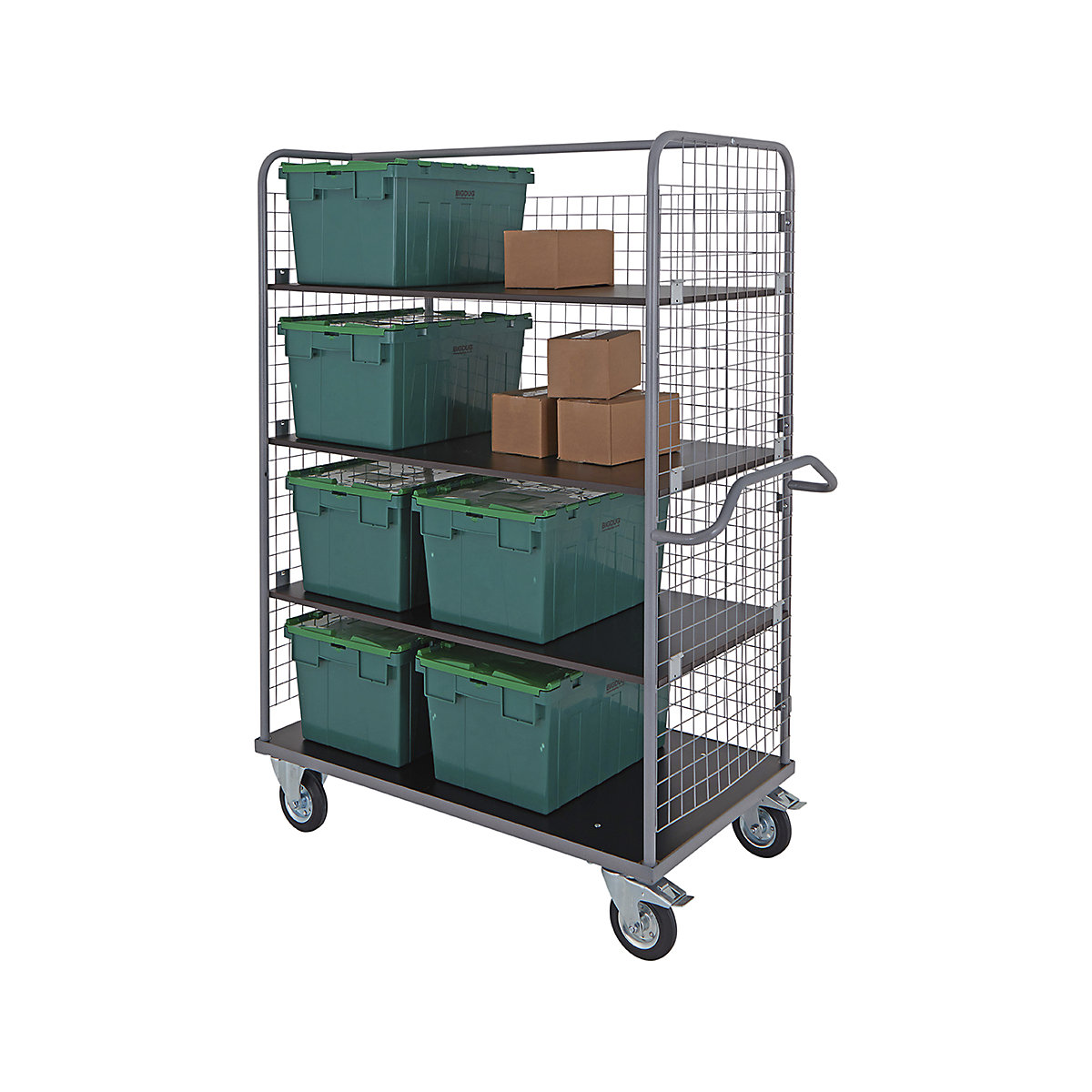

- Choice between open sided trolleys for easy access to goods or with mesh sides and mesh back panels for extra protection

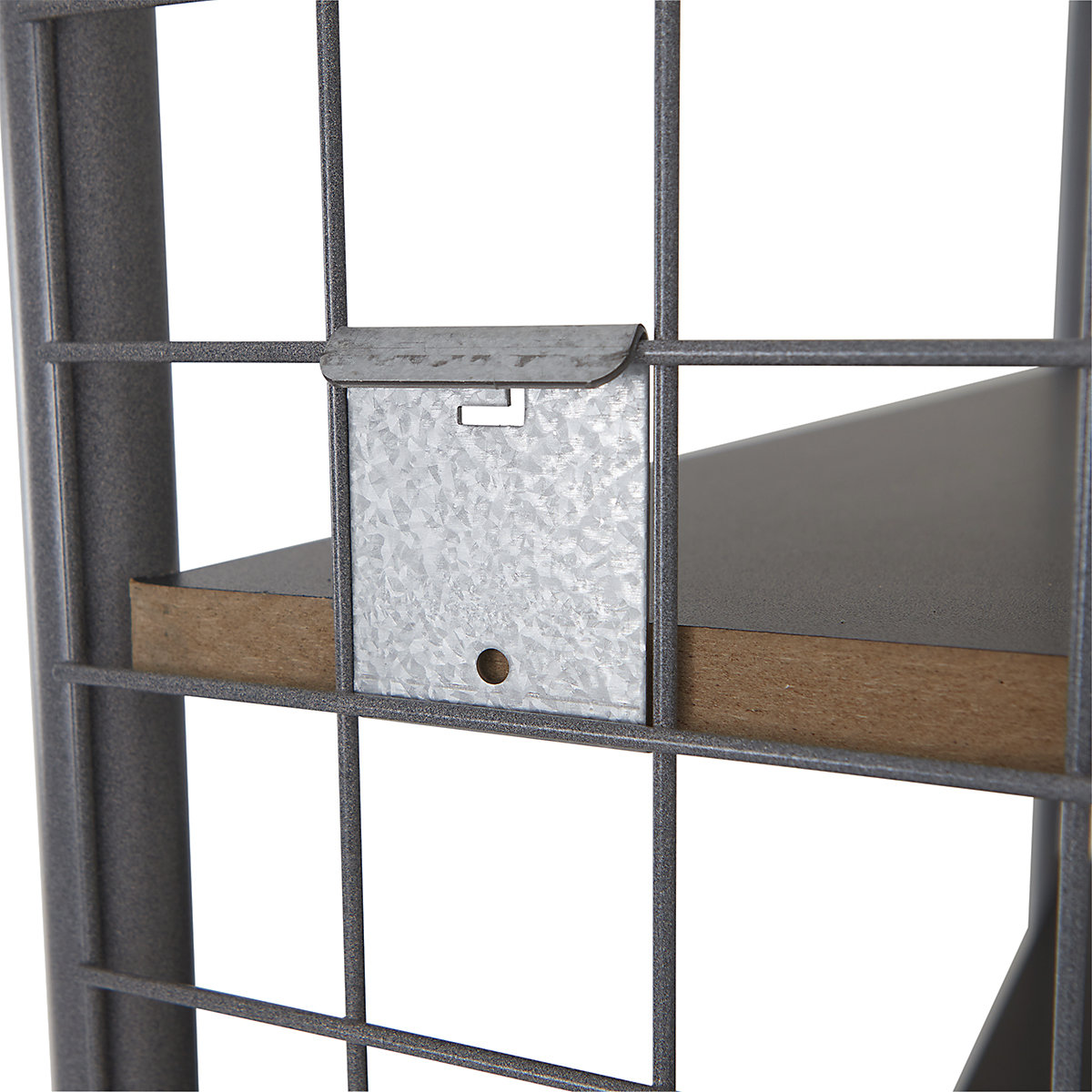

- Supplied with 3 wipe-clean removable shelves
- Upgrade to heavy duty castors for best stability and manoeuvrability even with heavier loads and uneven surfaces

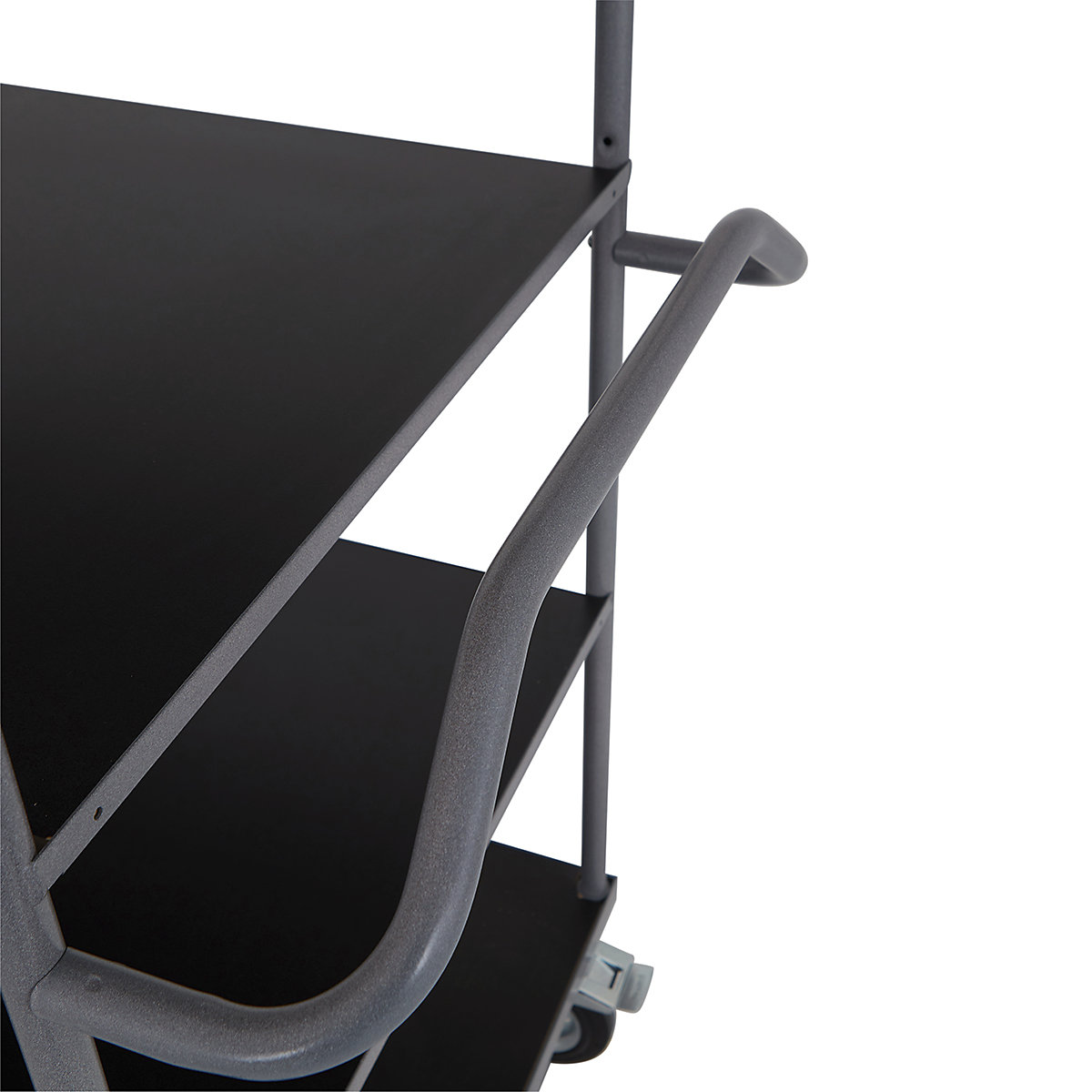

- The BiGDUG Four Level Heavy Duty Shelf Trolley is manufactured with sustainability in mind. Recycled powder is used to coat the product giving a unique speckled light grey finish
- All trolleys are provided with 160mm certified castors.
- Trolleys with 4x swivel castors are designed for pushing and offer easier turning and manoeuvrability, similar to a shopping trolley
- Trolleys with 2 fixed and 2 swivel castors are steadier in a straight line but do not manoeuvre as easily
- We recommend red PU heavy duty castors for best manoeuvrability due to lower roll resistance
- Simply choose the castor that suits your needs
- Simple self-assembly required
*UDL = Uniformly Distributed Load
**SWL = Safe Working Load
Specifications
| Data Field | 2 Fixed & 2 Swivel/Braked Castors | 2 Swivel & 2 Swivel/Braked Castors | Heavy Duty 2 Fixed & 2 Swivel / Braked Castors | Heavy Duty 2 Swivel & 2 Swivel/Braked Castors |
|---|---|---|---|---|
| Total SWL** | 300kg UDL* | 300kg UDL* | 500kg UDL* | 500kg UDL* |
| Base level max. load capacity | 150kg UDL* | 150kg UDL* | 350kg UDL* | 350kg UDL* |
| Removable shelf level max. load capacity | 50kg UDL* | 50kg UDL* | 50kg UDL* | 50kg UDL* |
| Wheel Dia (mm) | 160 | 160 | 160 | 160 |
| Wheel Tread (mm) | 23 | 23 | 42 | 42 |
| Wheel Bearning | Roller | Roller | Roller | Roller |
| Tyre Material | Rubber | Rubber | Polyurethane | Polyurethane |
Specifications
| SPECIFICATIONS | BiGDUG Four Level Heavy Duty Shelf Trolley |
|---|---|
| Platform Length x Width (mm) | 1200 x 700 |
| Loading Height (mm) | 235 |
| Overall Height (mm) | 1770 |
| Overall Length + Handle (mm) | 1310 |
| Handle Height (mm) | 1400 |
| Floor Clearance (mm) | 200 |
| Frame Material | Steel |
| Build | Self Assembly |
| Shelf Clearance (mm) | 360 |
| Shelf Thickness (mm) | 15 |
