BiG400 Racking 1980h x 1220w x 455d mm 4 Levels 400kg UDL Blue & Orange
BiG400 Racking 1980h x 1220w x 455d mm 4 Levels 400kg UDL Blue & Orange
- Next day delivery available, in stock products only
- Find a lower price & we'll match it
- Large Project? Call for site visit & quote
Friday 8am - 4:30pm
Excluding Bank Holidays

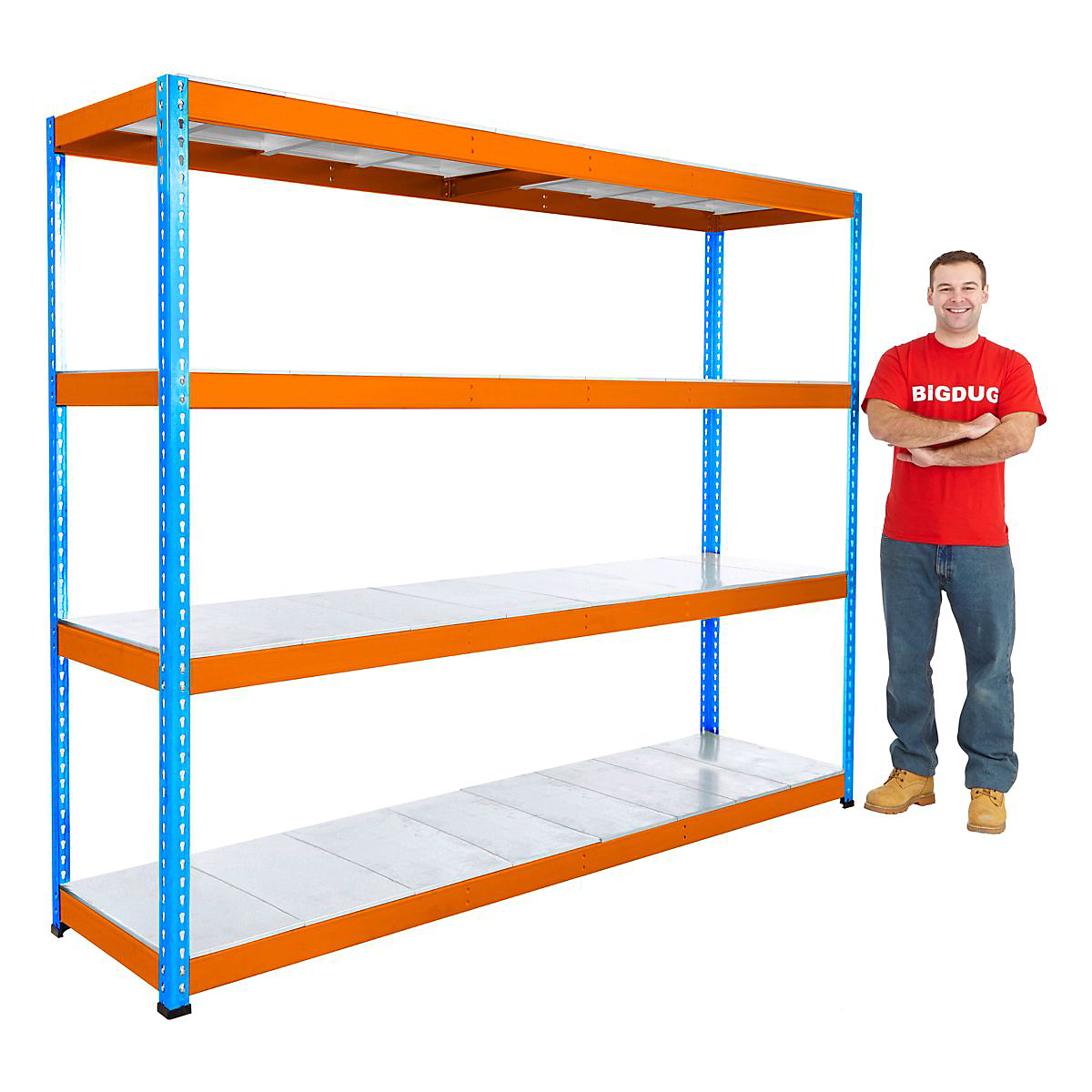

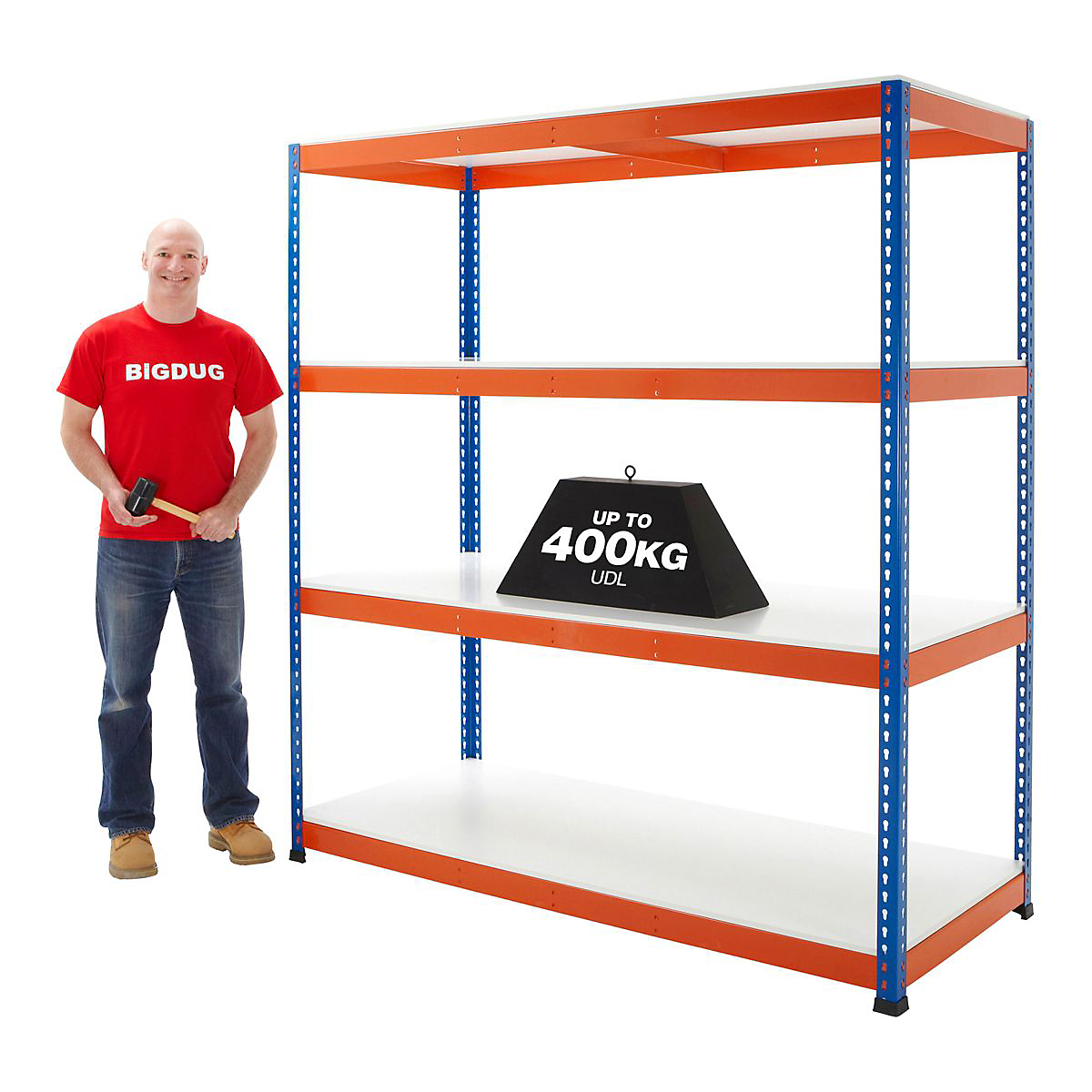

Shop our BiG400 Blue and Orange 1980mm High Racking from BiGDUG, trusted by countless businesses for its value and performance. This 1980mm high-racking combines quality with enhanced visibility, ensuring safe storage. With a simple boltless design, installation is easy, letting you optimise your space hassle-free. Streamline your operations with BiGDUG's reliable and user-friendly blue and orange racking.
- Up to 400kg UDL* per shelf/1600kg per bay UDL*
- Powder-coated blue uprights and high-visibility orange beams
- 1980mm-high premium, industrial-grade European steel shelving

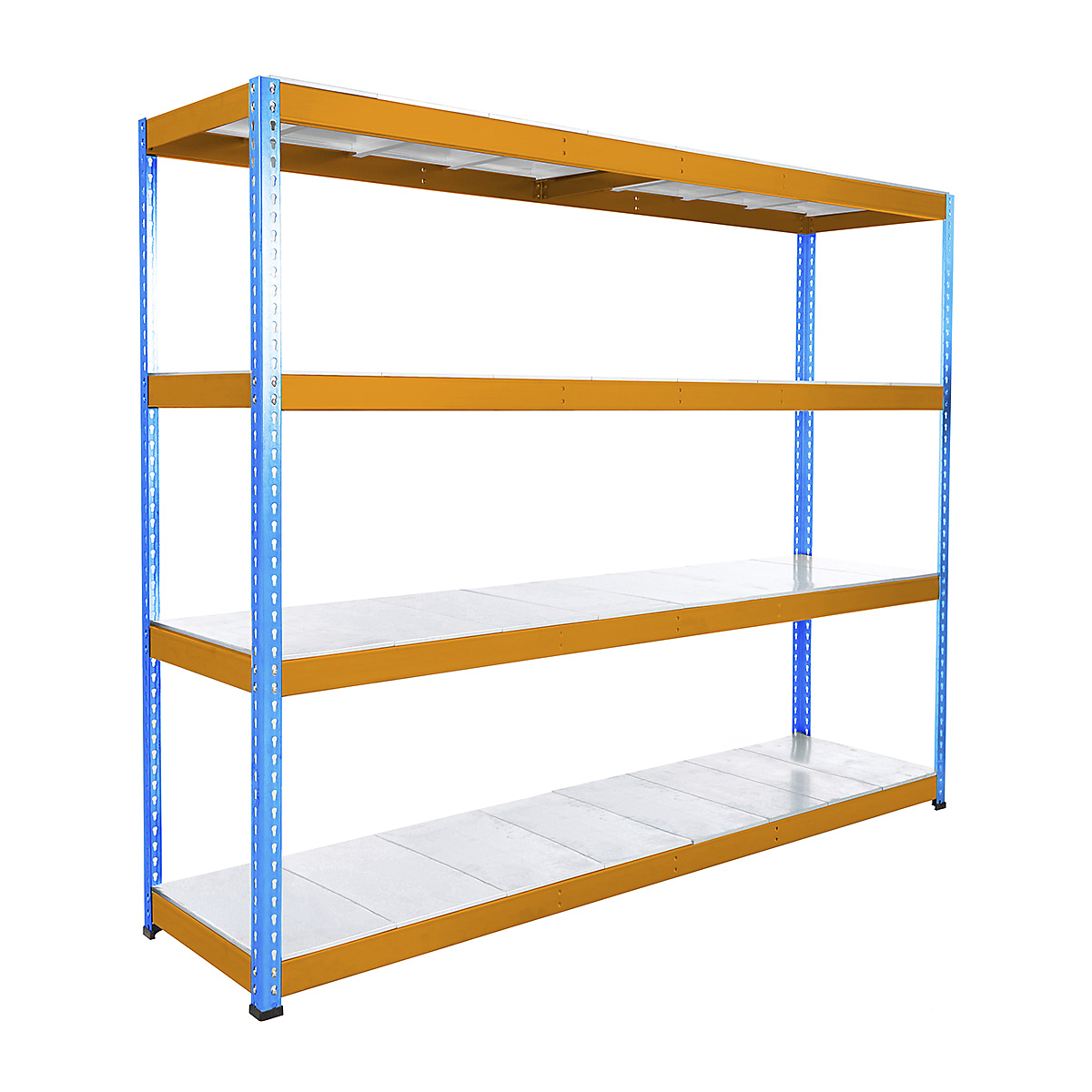

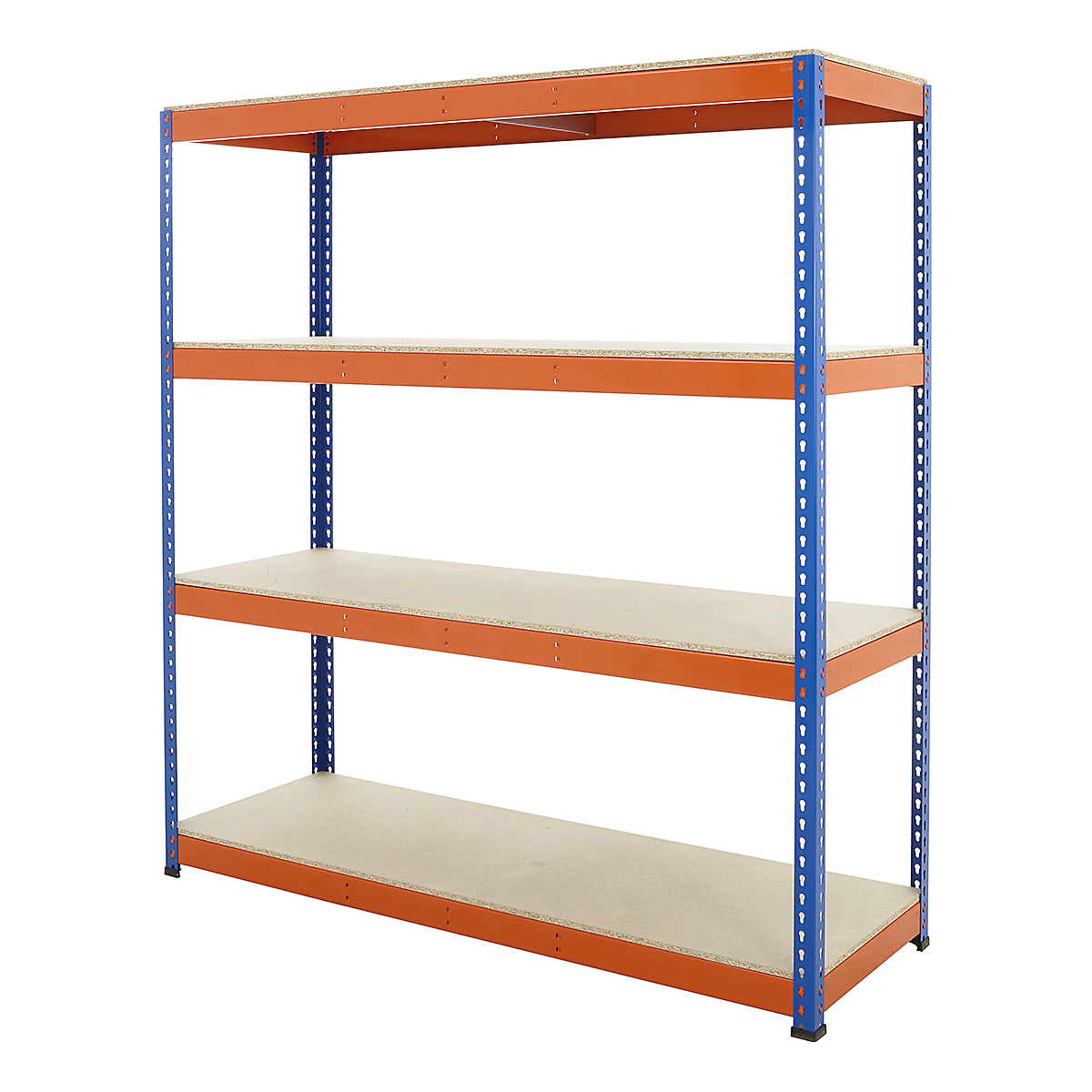

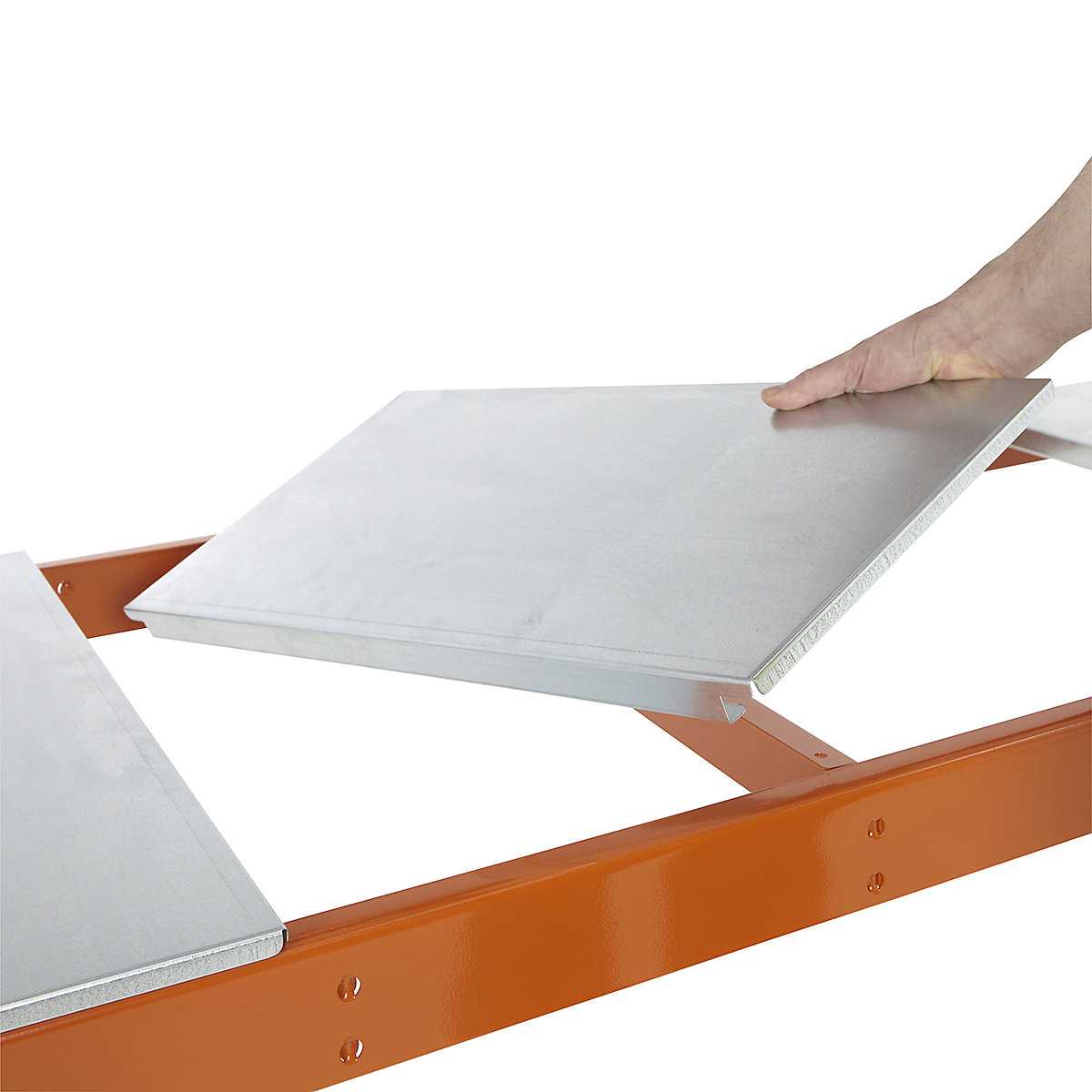

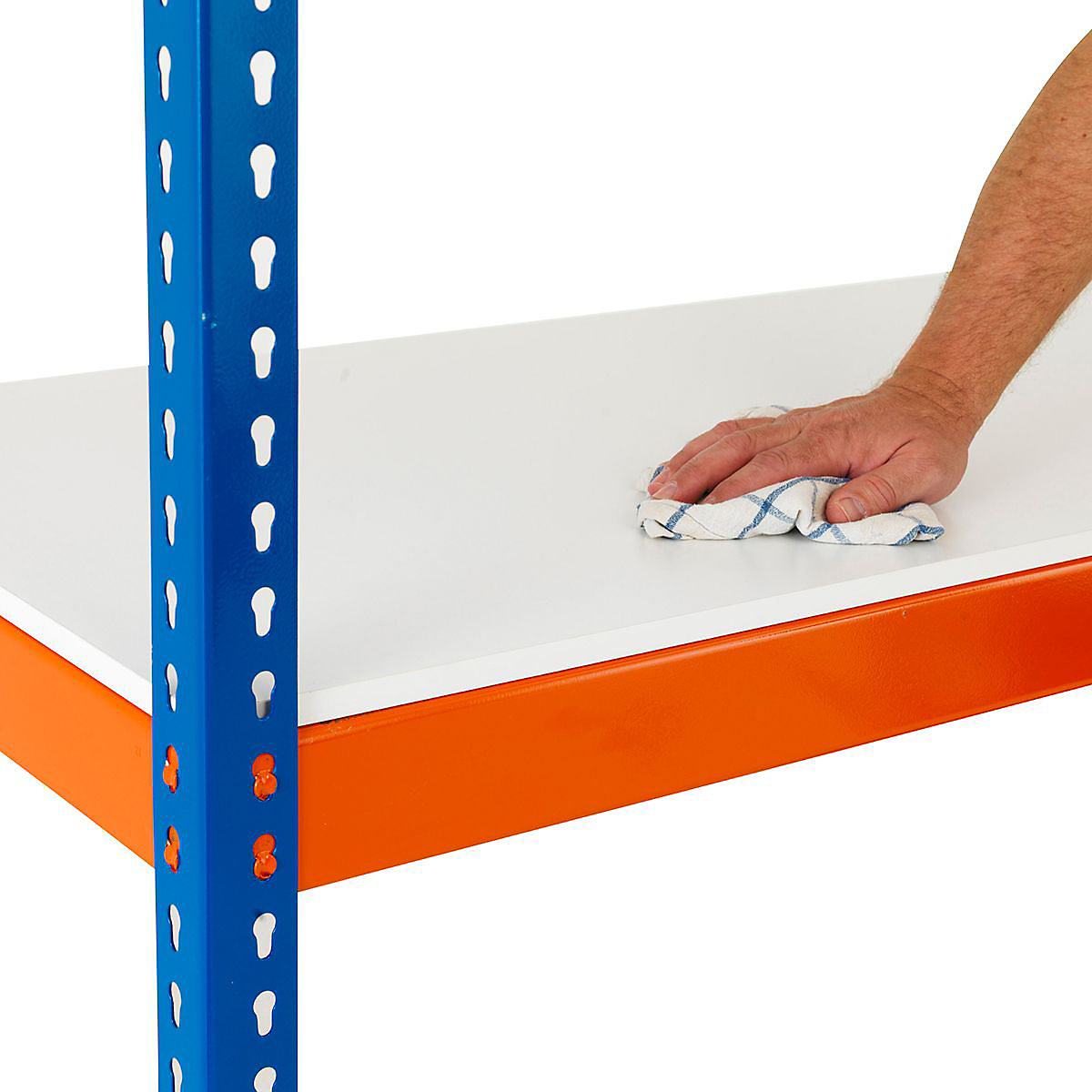

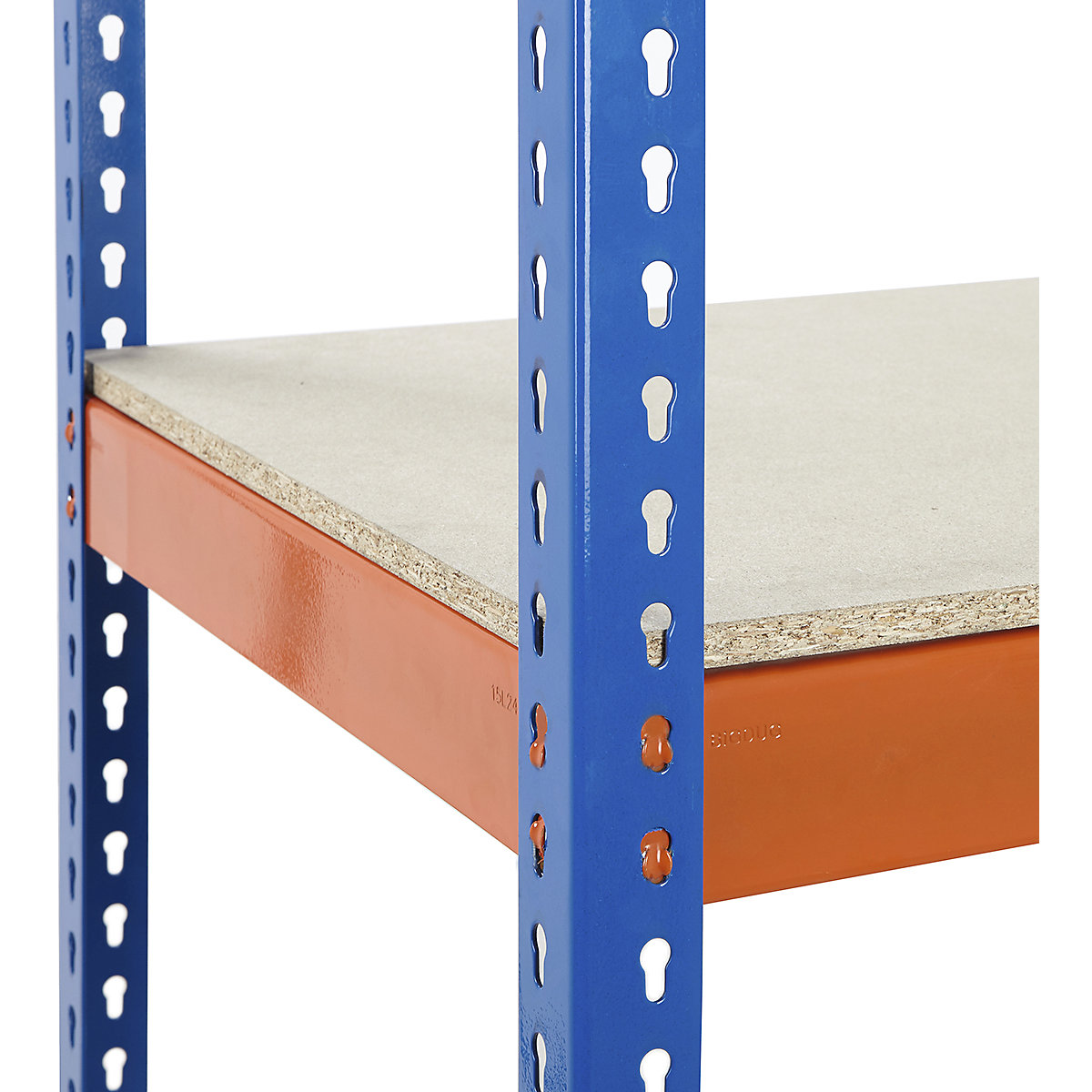

- Choice of chipboard, melamine, or steel shelves
- Shelf levels adjust in height every 38mm (1.5 inches)
- Simple boltless stud-and-keyhole design (just tap together with a rubber mallet)
- No cross bracing required - suitable for double-sided access

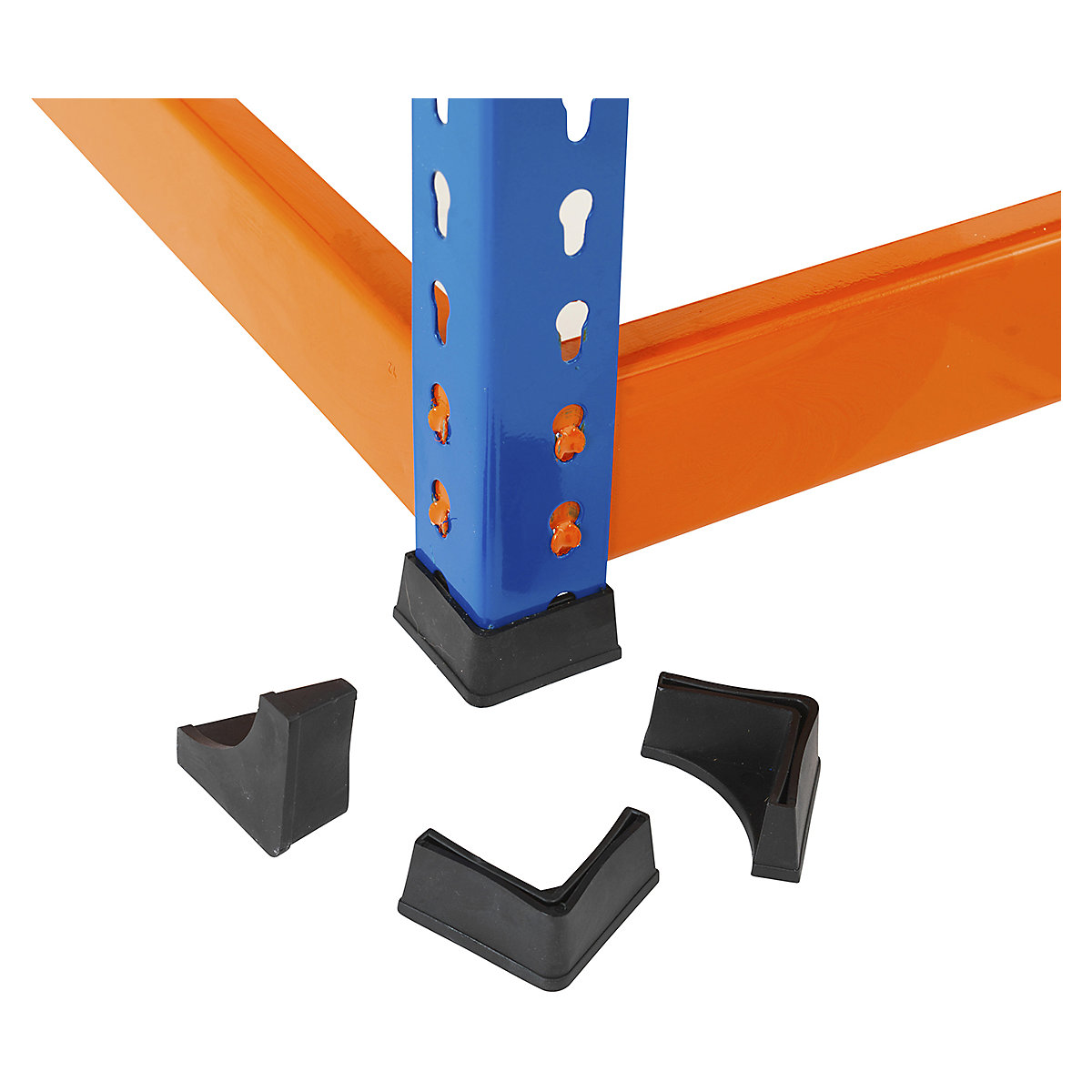

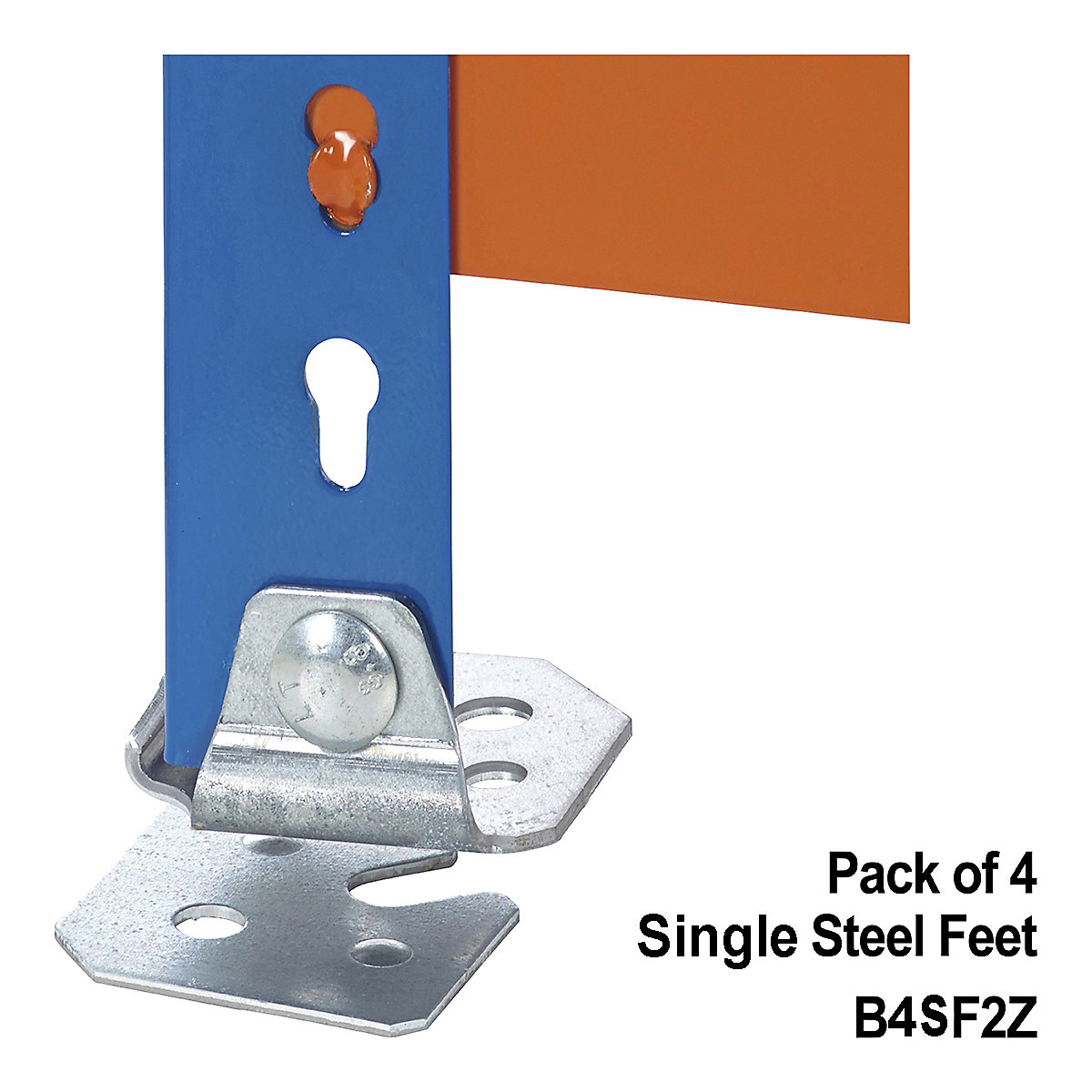

- Supplied with protective plastic feet
- Manufactured and certified to FEM standards

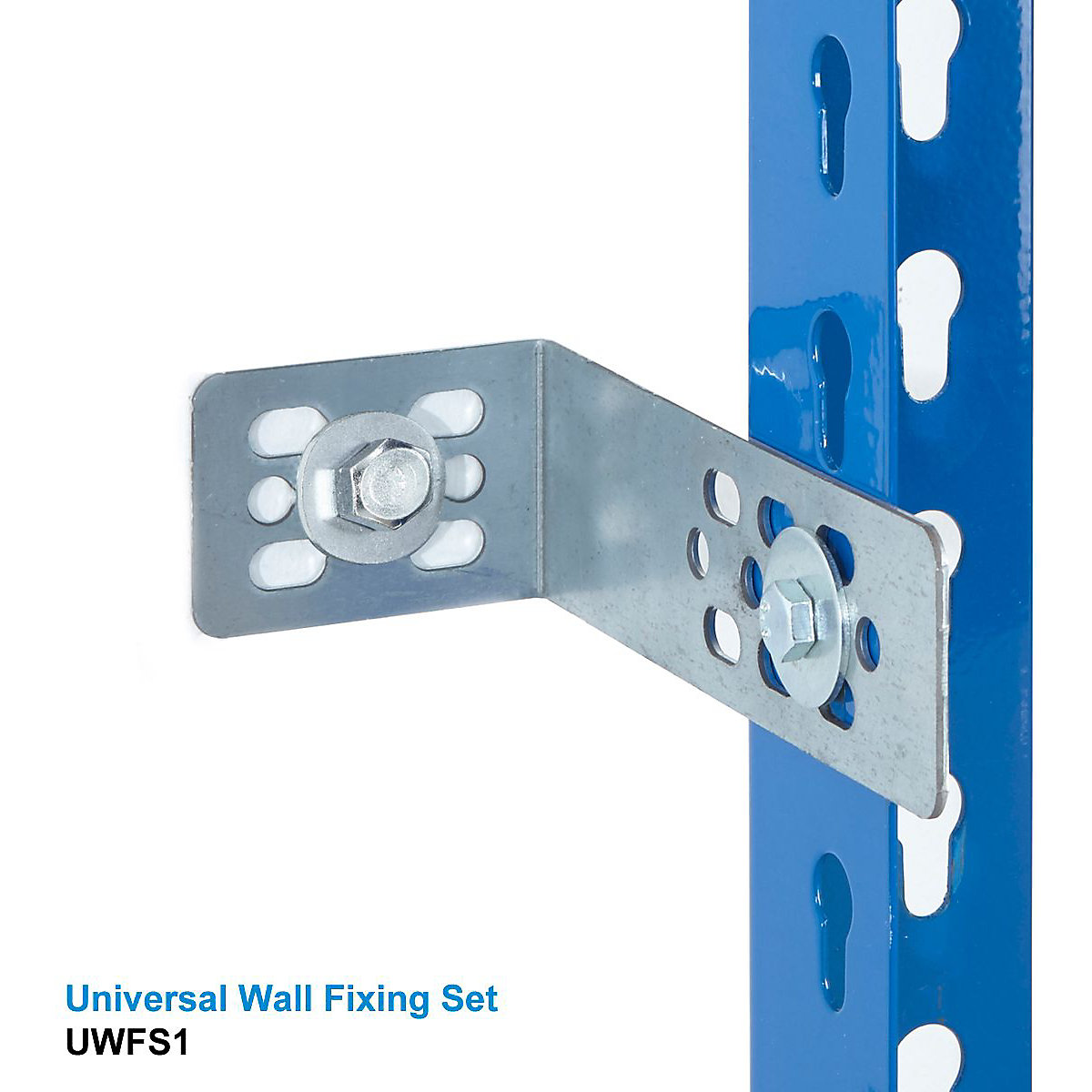

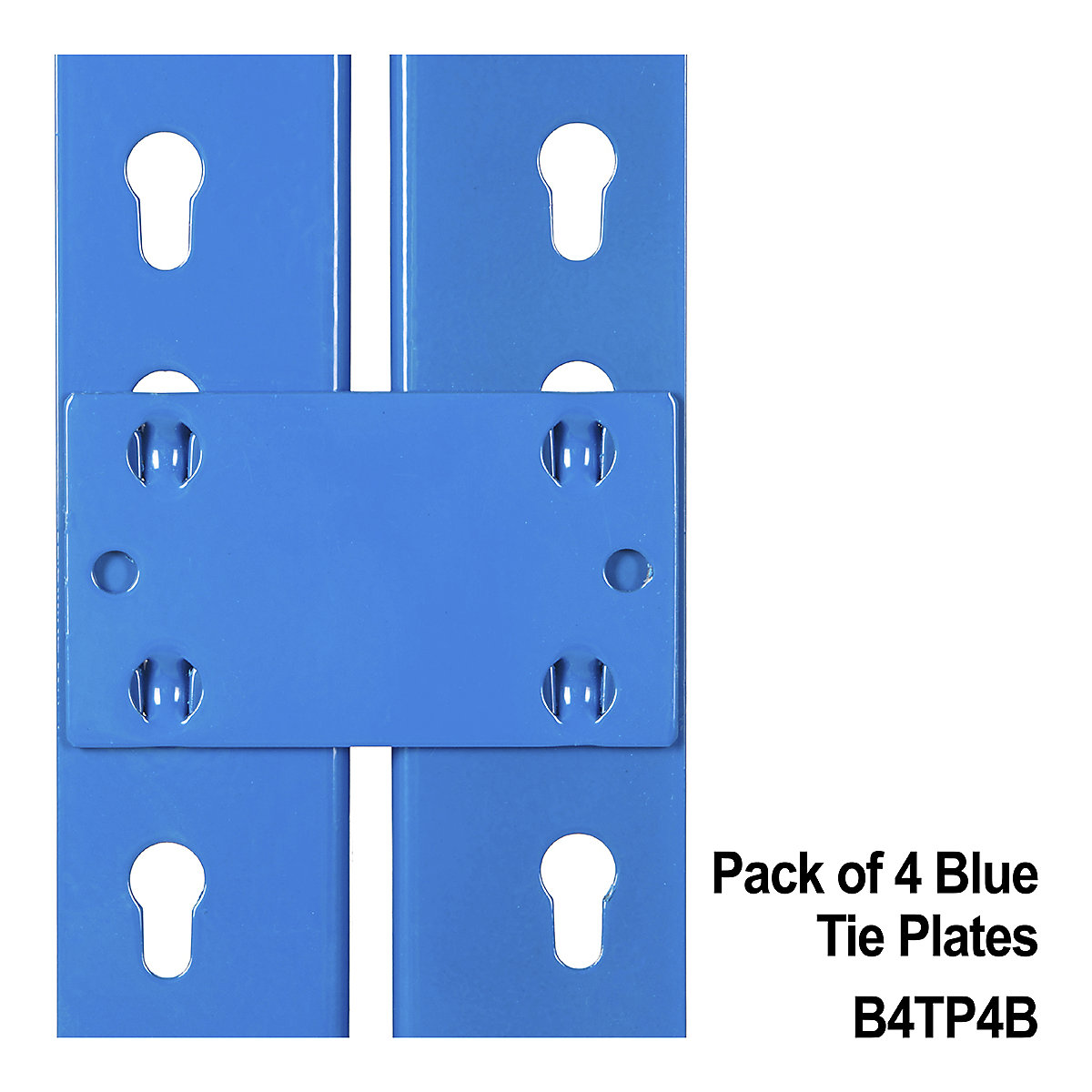

- Wall fixing sets, bay tie plates, assembly mallets, and additional shelves available to buy separately
* UDL = Uniformly Distributed load
Please note: for bays 2135mm or wider, the chipboard is supplied in 2 pieces per level.
Shelving Specifications
| Data Field | 1220mm Width | 1525mm Width | 1830mm Width | 2135mm Width | 2440mm Width |
|---|---|---|---|---|---|
| Upright Type | One Piece | One Piece | One Piece | One Piece | One Piece |
| Upright Steel Thickness | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 1.5mm |
| Beam Steel Thickness | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 1.5mm |
| Shelf Adjustment Increments | 38.1mm | 38.1mm | 38.1mm | 38.1mm | 38.1mm |
| Shelf Thickness | 94mm | 94mm | 94mm | 94mm | 94mm |
| Chipboard Thickness | 15mm | 15mm | 15mm | 15mm | 15mm |
| Melamine Thickness | 15mm | 15mm | 15mm | 15mm | 15mm |
| Steel Panel Thickness | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 0.8mm |
| Total Bay Capacity 1980h mm | 1600kg | 1600kg | 1600kg | 1600kg | 1600kg |
| Clear Width | 1135mm | 1440mm | 1745mm | 2050mm | 2355mm |
| Extra Levels Available | Y | Y | Y | Y | Y |

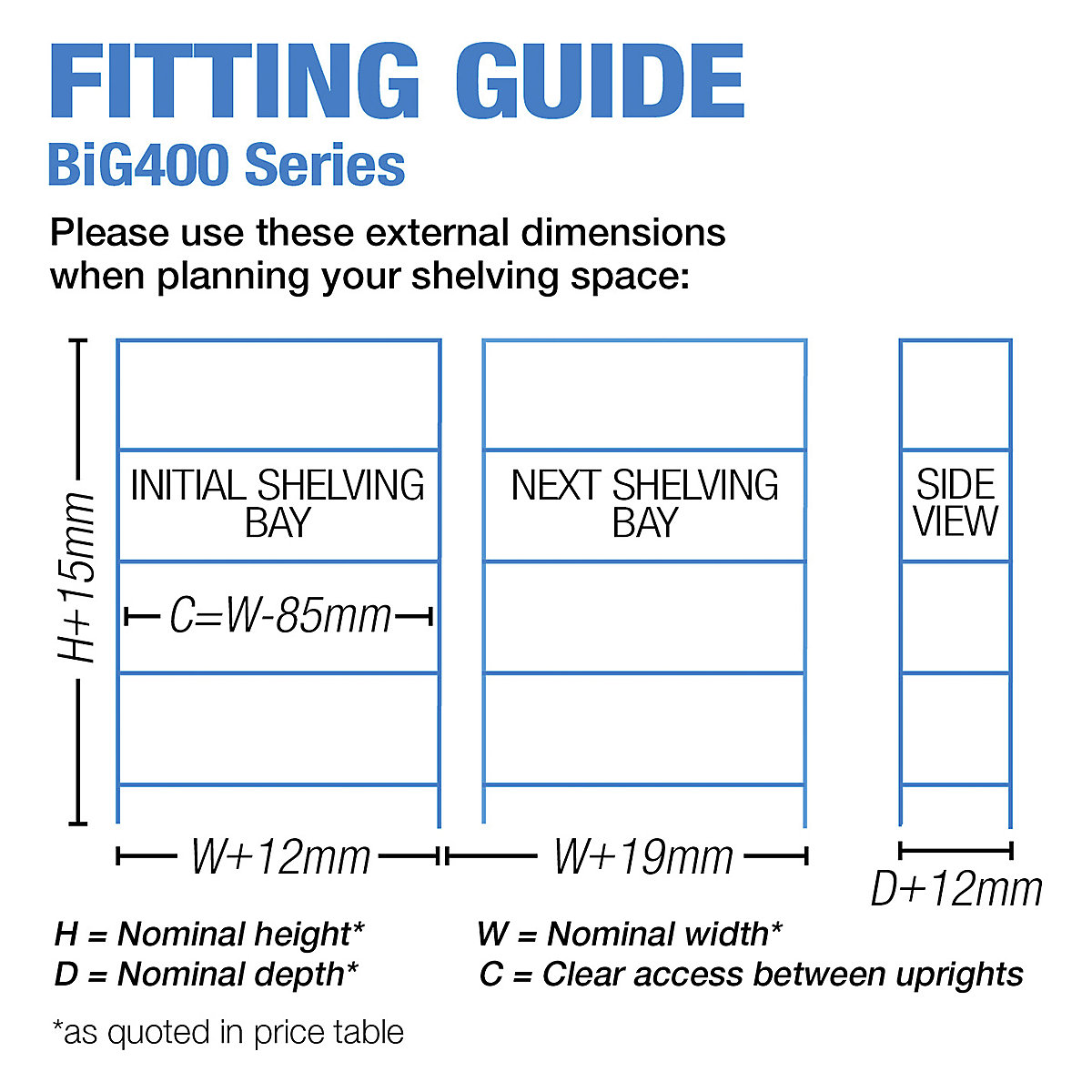

Fitting Guide
Please check our guides for each range when planning your shelving space.
| Nominal Shelf Width mm: | Clear Entry mm: | Initial Bay External mm: | Next Bay External mm: |
|---|---|---|---|
| 1220 | 1135 | 1232 | 1239 |
| 1525 | 1440 | 1537 | 1544 |
| 1830 | 1745 | 1842 | 1849 |
| 2135 | 2050 | 2147 | 2154 |
| 2440 | 2355 | 2452 | 2459 |
External Height = H+12 Pitch = 38.1
Clear height between shelves = (No. x pitch) -30
All dimensions in Millimetres
Is This Blue and Orange Racking Suitable for Industrial Use?
Join thousands of businesses in choosing BiG400 industrial shelving made from premium industrial-grade European steel. This blue and orange racking system has been tested and evaluated to meet FEM standards for reliability in challenging conditions. With a load-bearing capacity of up to 400kg UDL* per shelf, it is ideal in both industrial and retail settings.
What Are the Benefits of the BiG400 Blue & Orange 1980mm High Racking?
The cost-effective design of the BiG400 Blue and Orange Warehouse Racking features a simple, boltless stud-and-keyhole assembly, ensuring quick and easy setup. Tap the parts together with a rubber mallet for easy installation, saving you time and effort. The blue uprights and high-visibility orange beams enhance visibility, promoting safety in dimly lit warehouse areas. Organise your space efficiently with this 1980mm high racking system.
Is the BiG400 1980mm High Racking Adjustable?
Discover the BiG400 blue and orange 1980mm high racking, delivering quality and adaptability. Customise your storage setup with your choice of chipboard, melamine, or steel shelves that are adjustable at 38mm intervals, accommodating items of various sizes. Safely store and organise your items with ease, thanks to the sturdy construction of this versatile storage racking system.
Contact BiGDUG
BiGDUG is a reliable supplier of BiG400 1980mm high racking. If you're planning a large project and need some personal assistance, we can call to your site to assess your requirements.
For anything else, please contact us on 0333 200 5299 or via Live Chat on Monday to Thursday 9am - 5pm, and Friday 9am - 4:30pm.
